Wichard HR Snap Shackle – Large Bail – Length 140mm

MPN: 02377
SKU: CW93150

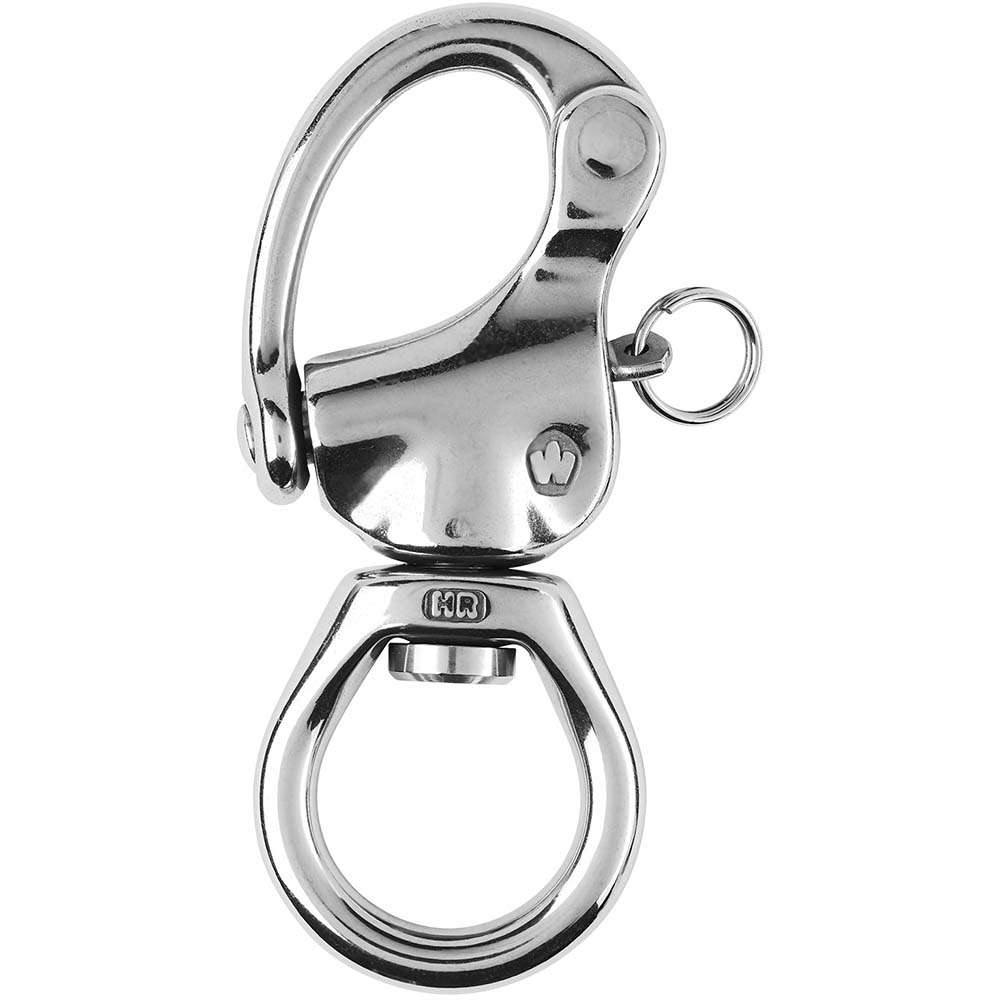

Wichard HR Snap Shackle - Large Bail - Length 140mm
Wichard HR Snap Shackle - Large Bail - Length 140mm - Image 2

Wichard HR Snap Shackle – Large Bail – Length 140mm

MPN: 02377

SKU: CW93150

The HR Snap Shackle is a durable and versatile tool made from Grade 17.4 PH stainless steel, measuring 140mm in length. It features a large eye for multiple rope attachments and a swivel eye for free rotation. The plunger pin is securely captive, ensuring safety during use. With excellent working and breaking loads, it is ideal for various applications.

Features
  • HR Forged snap shackle (Grade 17.4 PH stainless steel) with large eye
  • The large eye allows attaching several ropes
  • Free rotation of the snap shackle thanks to the swivel eye
  • The plunger pin is set captive into the hook and cannot become detached
  • Excellent working and breaking loads

Categories: ,

3 in stock

$201.88

Free Shipping

OEM Parts

3 in stock

-

With 2-Day Shipping

Get By Sunday 05/04

Add to wishlist

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Always Low Prices
Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Wichard HR Snap Shackle – Large Bail – Length 140mm

[mwai_chatbot id="default"]

About your product

Product Description

HR Snap Shackle – Large Bail – Length 140mm

Features:

  • HR Forged snap shackle (Grade 17.4 PH stainless steel) with large eye
  • The large eye allows attaching several ropes
  • Free rotation of the snap shackle thanks to the swivel eye
  • The plunger pin is set captive into the hook and cannot become detached
  • Excellent working and breaking loads
  • Easy to open by pulling the plunger pin (possibility to attach a lanyard)

Applications:

  • Snap shackle applications
  • Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

  • Materials HR 17.4 PH stainless steel grade
  • Length (inch) 5-33/64″
  • Working load (lb) 6170
  • Breaking load (lb) 16530
  • Weight (lb) 0.877

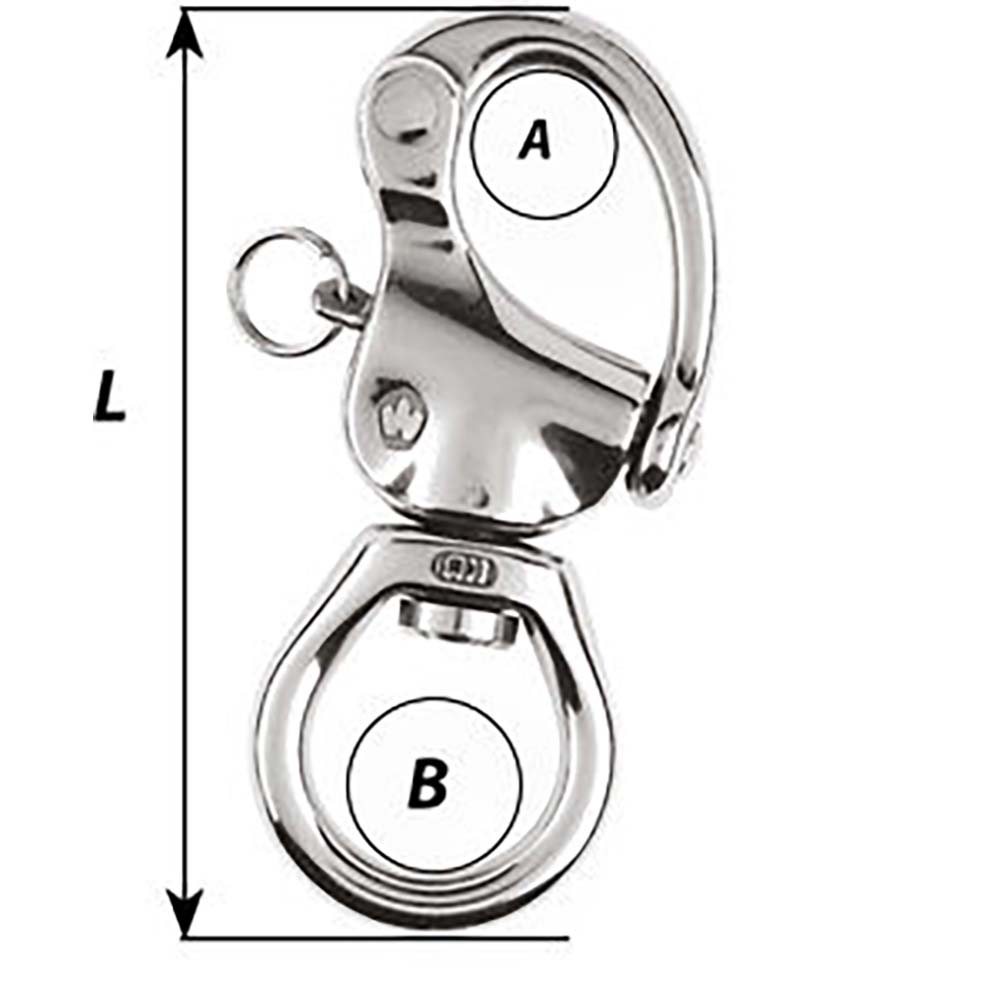

Dimensions (see 2nd image):

  • A (inch) 1-1/32″
  • B (inch) 1-3/8″

Manufacturer : Wichard Marine
Manufacturer Part No : 02377
UPC : 768536023770

Specs & Manuals

Additional information

Weight 1.00 lbs
Dimensions 6.00 × 2.00 × 2.00 in
Brand

UPC

MPN
