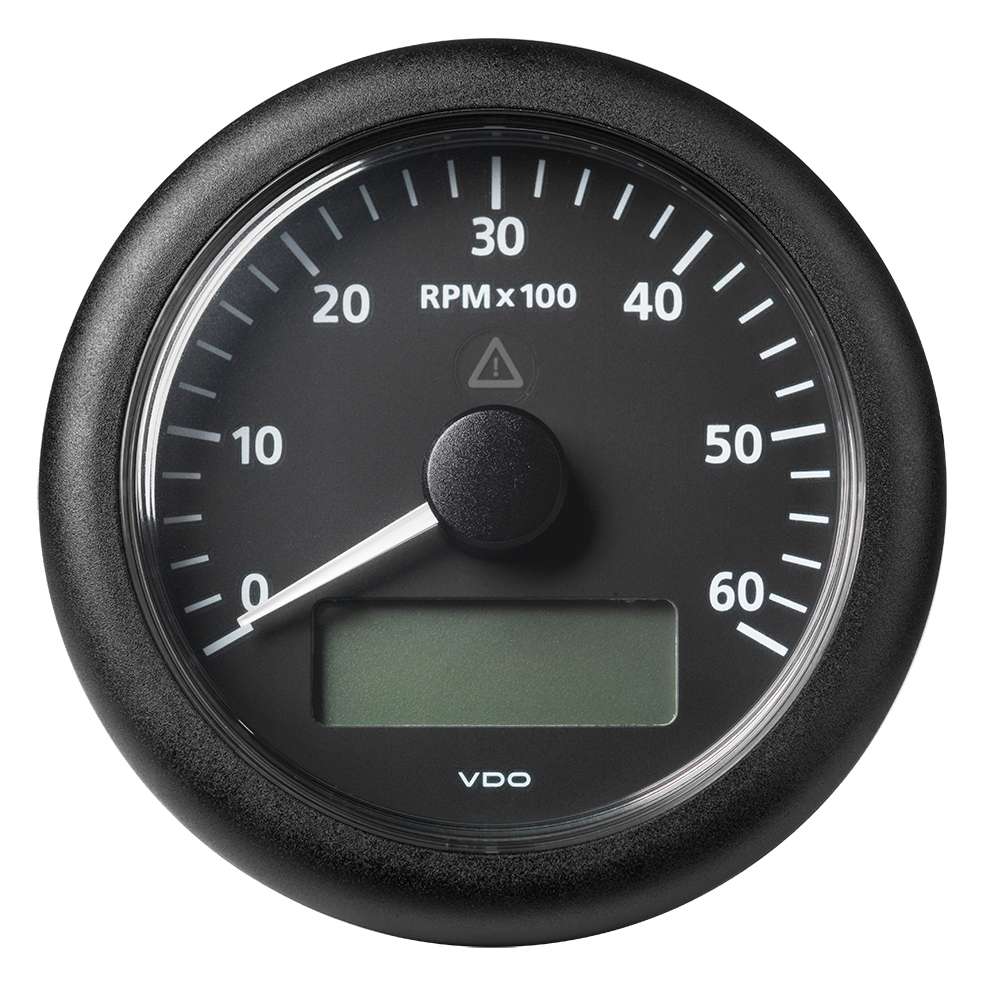

Veratron 3-3-8″ (85MM) ViewLine Tachometer w-Multi-Function Display – 0 to 6000 RPM – Black Dial & Bezel

MPN: A2C59512393
SKU: CW81572
Veratron 3-3-8" (85MM) ViewLine Tachometer w-Multi-Function Display - 0 to 6000 RPM - Black Dial & Bezel

Veratron 3-3-8″ (85MM) ViewLine Tachometer w-Multi-Function Display – 0 to 6000 RPM – Black Dial & Bezel

MPN: A2C59512393

SKU: CW81572

The ViewLine Tachometer features a multi-function display that operates from 0 to 6000 RPM and can connect to conventional marine engines. It includes an integrated LED warning light and offers various sensor inputs. The device is designed for durability with a protection rating of IP67. It is suitable for a wide operating temperature range.

Features
  • Various sensor inputs (W, Ind, Hall, Generator)
  • Output for acoustic alert (option)
  • LCD size - 37 mm x 11 mm
  • Accuracy +/- 2.5 % of full scale reading
  • Operating temperature range -20 ?C / +70 ?C

Categories: ,

6 in stock

$144.49

Free Shipping

OEM Parts

6 in stock

-

With 2-Day Shipping

Get By Saturday 05/03

Add to wishlist

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Always Low Prices
Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Veratron 3-3-8″ (85MM) ViewLine Tachometer w-Multi-Function Display – 0 to 6000 RPM – Black Dial & Bezel

[mwai_chatbot id="default"]

About your product

Product Description

3-3/8″ (85MM) ViewLine Tachometer with Multi-Function Display – 0 to 6000 RPM – Black Dial & Bezel

The ViewLine Tachometer is available with or without operating hours counter (digital display) and can be connected to conventional marine engines (no data bus).

One LED warning light is integrated as a standard.

Specifications:

  • Various sensor inputs (W, Ind, Hall, Generator)
  • Output for acoustic alert (option)
  • LCD size – 37 mm x 11 mm
  • 8 and 14 pole Tyco / Hirschmann bush housing • Operating voltage 8 – 32 V
  • Accuracy +/- 2.5 % of full scale reading
  • < 175 mA current consumption with an LED warning  light as standard
  • Number of pulses programmable via dip switch  or PC software (ViewLine programming tool)
  •  Anti-fog double lens
  •  Protection rating front IP67, rear IP52
  •  85 mm installation diameter
  •  50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Reverse polarity protection

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Manufacturer : Veratron
Manufacturer Part No : A2C59512393
UPC : 7640178722163

Specs & Manuals

Additional information

Weight 0.45 lbs
Dimensions 8.00 × 7.00 × 4.00 in
