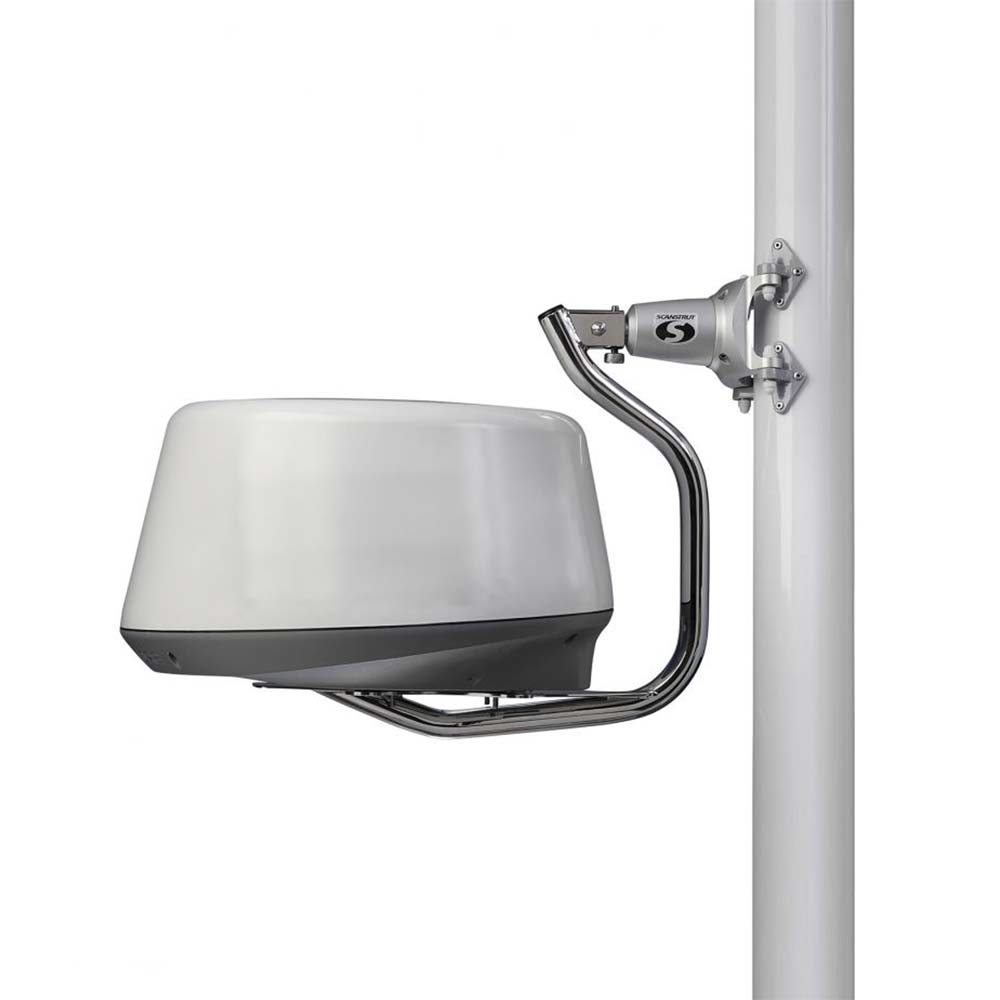

Self Levelling Radar Mount – Mast

Compatible Units:

• Garmin GMR18/GMR18HD/GMR24HD
• Raymarine RD218/RD424
• Lowrance 3G Broadband
• Simrad 3G Broadband
• Simrad DX45/DX60

The Self-Levelling Mast Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in the heel angle of the boat whilst eliminating all small oscillations.

Features:

• Hydraulic damping to eliminate minor oscillations
• Sealed system – entirely maintenance-free
• Passive system – no power required
• Reduced weight aloft – complete system weighs only 3.4 kg
• Easy upgrade from fixed mast mount – same mounting footprint as SC20 & M92722
• Attached to the mast by four swivel feet – matches the profile of any mast
• 12 point fixing – highest quality Monel rivets
• Compact mount – radar extends only minimum distance from front of mast

Materials:

• Finest quality machined and anodised aluminium mast adapter
• Marine grade 316 stainless steel cradle and base plate

Kit Includes:

• 1 x Levelling mount
• 1 x Mast Adapter
• 1 x Complete fastening pack

Manufacturer : Scanstrut
Manufacturer Part No : LMM-1
UPC : 5060114791152
