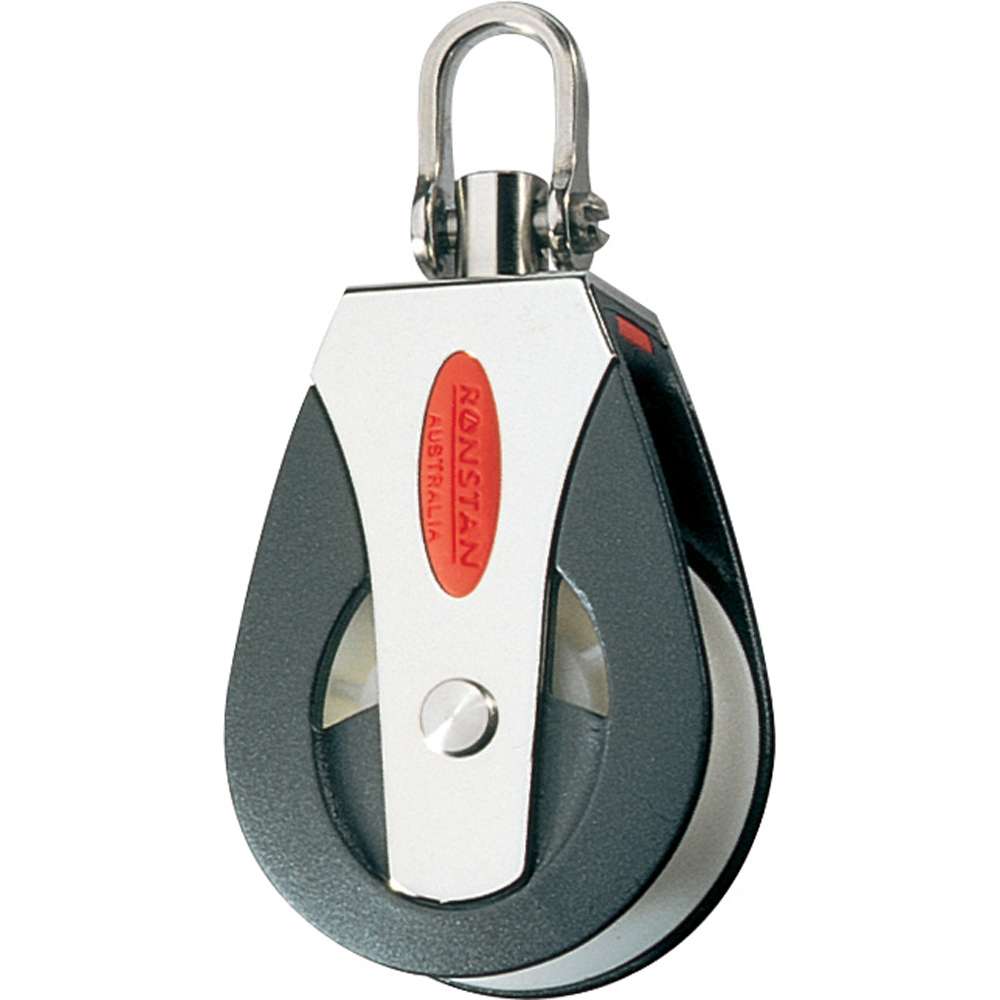

Series 50 All Purpose Block – Single – Universal Head

All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required

Features:

• Exceptionally high working loads

• Low maintenance, long service life

• Self lubricating sheave

• Captive Lock™ universal head

• Slotted pin shackle eliminates fouled lines

Applications:
Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10M(33′)

Materials:

• Nylatron® sheave

• Grade 316 stainless steel load strap and head fitting

• Impact and U.V. resistant, fiber reinforced Nylon cheeks

Specifications:
Sheave Ø: 50mm(2″)
Max. Rope Ø: 12mm(1/2″)
Max. Pin Ø: 5mm(3/16″)
M.W.L.: 750kg(1,650lbs)
B. L.: 1,500kg(3,310lbs)
Weight: 118g(4.1oz)

Manufacturer : Ronstan
Manufacturer Part No : RF51100
UPC : 9316800241101
