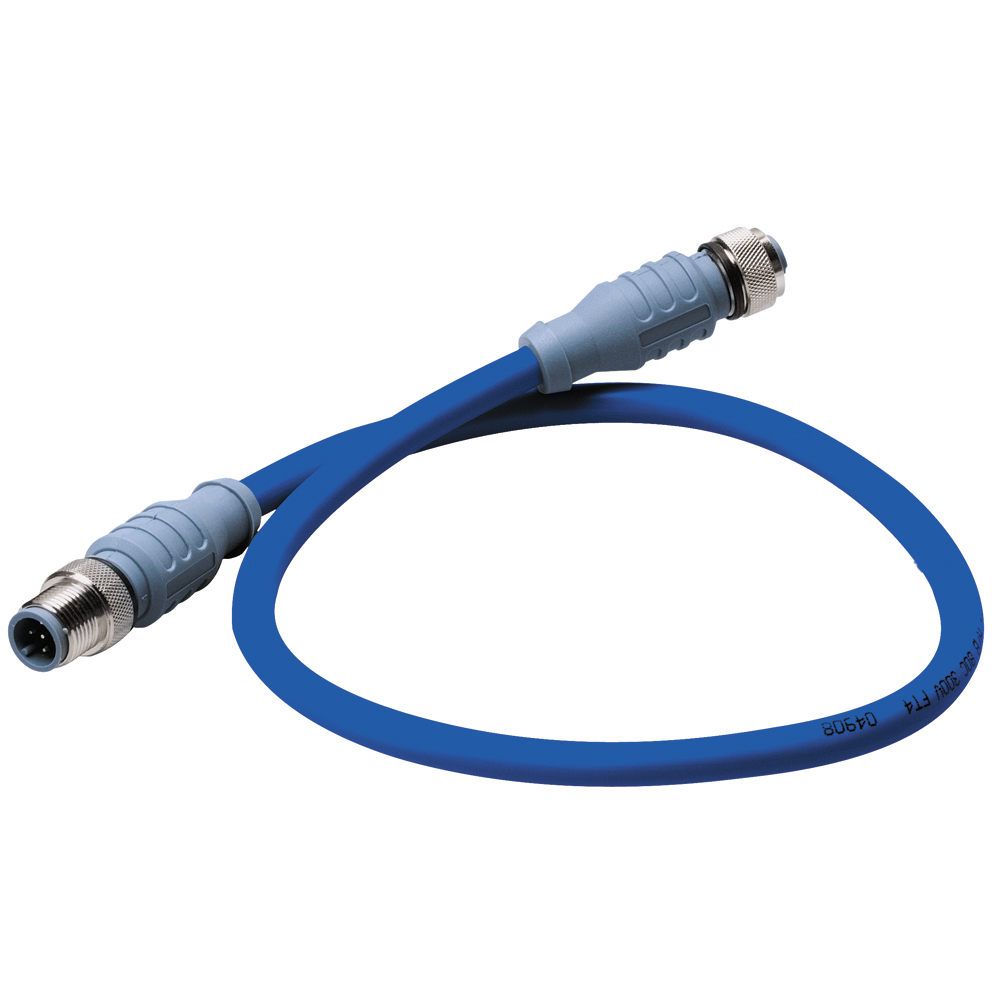

Maretron Mid Double-Ended Cordset – 4 Meter – Blue

MPN: DM-DB1-DF-04.0
SKU: CW47014
Maretron Mid Double-Ended Cordset - 4 Meter - Blue

Maretron Mid Double-Ended Cordset – 4 Meter – Blue

MPN: DM-DB1-DF-04.0

SKU: CW47014

Categories: ,

1 in stock

$39.40

UPS Ground

OEM Parts

1 in stock

-

With 2-Day Shipping

Get By Friday 05/02

Add to wishlist

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Always Low Prices
Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Maretron Mid Double-Ended Cordset – 4 Meter – Blue

[mwai_chatbot id="default"]

About your product

Product Description

Maretron Mid Double-Ended Cordset – 4 M Blue

Mechanical:

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59″

    Electrical

  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V

    Cable

  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2×16 (1.29mm) AWG, Data 2×20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

    ENVIRONMENTAL

  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

    APPROVALS

  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3
    Manufacturer : Maretron
    Manufacturer Part No : DM-DB1-DF-04.0
    UPC : 873804001937
    • Specs & Manuals

    Additional information

    Weight 1.00 lbs
    Dimensions 10.00 × 7.00 × 1.00 in
