Maretron Mid Bulk Cable – 100 Meter – Gray

MPN: DG1-100C
SKU: CW47023

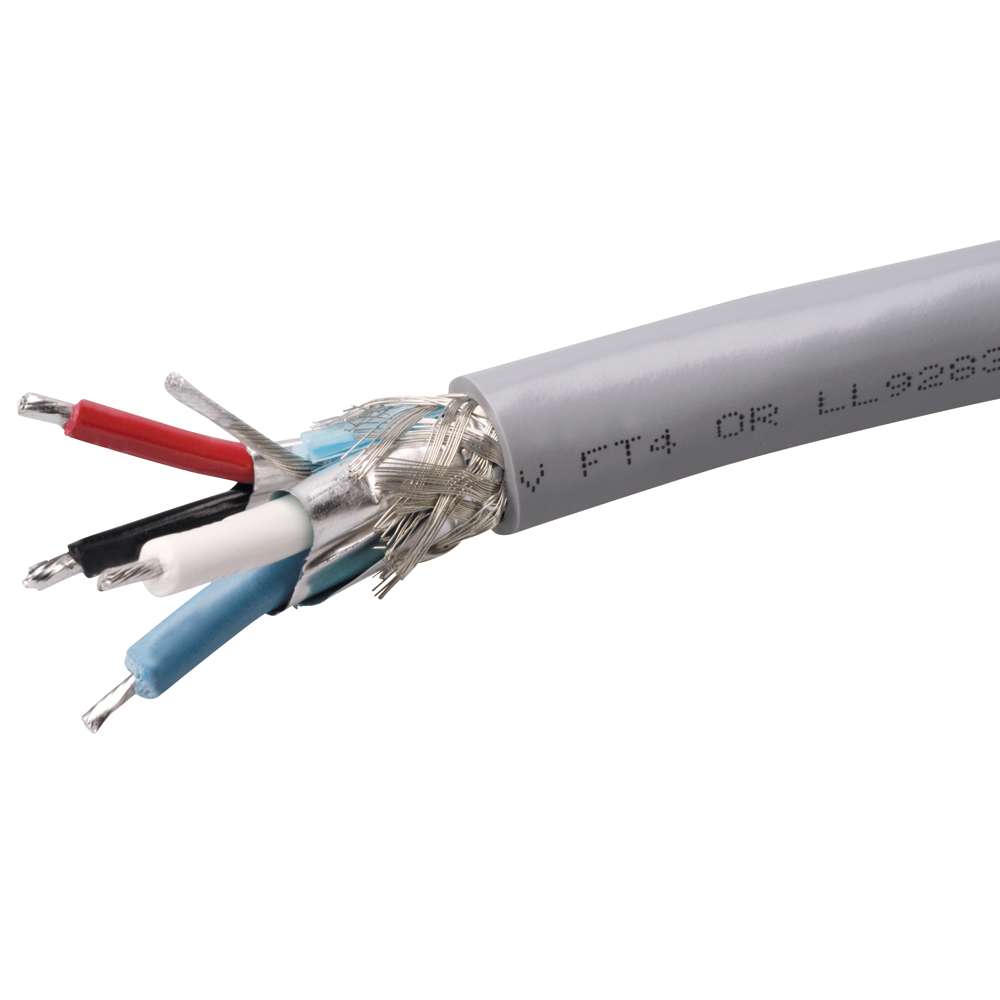

Maretron Mid Bulk Cable - 100 Meter - Gray

Maretron Mid Bulk Cable – 100 Meter – Gray

MPN: DG1-100C

SKU: CW47023

The Maretron DG1-100C cable features a durable PVC outer jacket available in gray and blue. It includes a robust construction with multiple wire gauges and advanced shielding. The cable is designed for both power and data transmission, ensuring high performance. It meets various industry approvals for safety and reliability.

Features
  • Outer Jacket Mat/Color: PVC/Gray - DG1, PVC/Blue - DB1
  • Insulation Material: PE (data wires), PVC (power wires)
  • Max Amperage: 14 Amps with 4.1 Ohms/1000 ft resistance
  • UL and CSA approved for high-temperature applications
  • NMEA 2000 and IEC-61162-3 compliant

Categories: ,

1 in stock

$443.29

Free Shipping

OEM Parts

1 in stock

-

With 2-Day Shipping

Get By Saturday 05/03

Add to wishlist

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Always Low Prices
Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Maretron Mid Bulk Cable – 100 Meter – Gray

[mwai_chatbot id="default"]

About your product

Product Description

Specifications

Overall

  • Outer Jacket Mat/Color: PVC/Gray – DG1 PVC/Blue – DB1
  • Insulation Material: PE (data wires), PVC (power wires)
  • Construction: 2×16 (1.29mm) AWG, 2×20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)

    Power Pair

  • Wire: 2×16 (1.29mm) AWG
  • Resistance/Conductor: 4.1 Ohms/1000 ft max
  • Max Amperage: 14 Amps
  • Color Code: Red/Black

    Data Pair

  • Wire: 2×20 (0.81mm) (AWG)
  • Characteristic Impedance: 120 Ohms +/- 10%
  • Capacitance: 10.75 pF/ft
  • Color Code: White/Blue

    Approvals

  • UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC-61162-3
    Manufacturer : Maretron
    Manufacturer Part No : DG1-100C
    UPC : 873804003030
    • Specs & Manuals

    Additional information

    Weight 25.00 lbs
    Dimensions 12.00 × 12.00 × 11.00 in
    Brand

    UPC

    MPN
