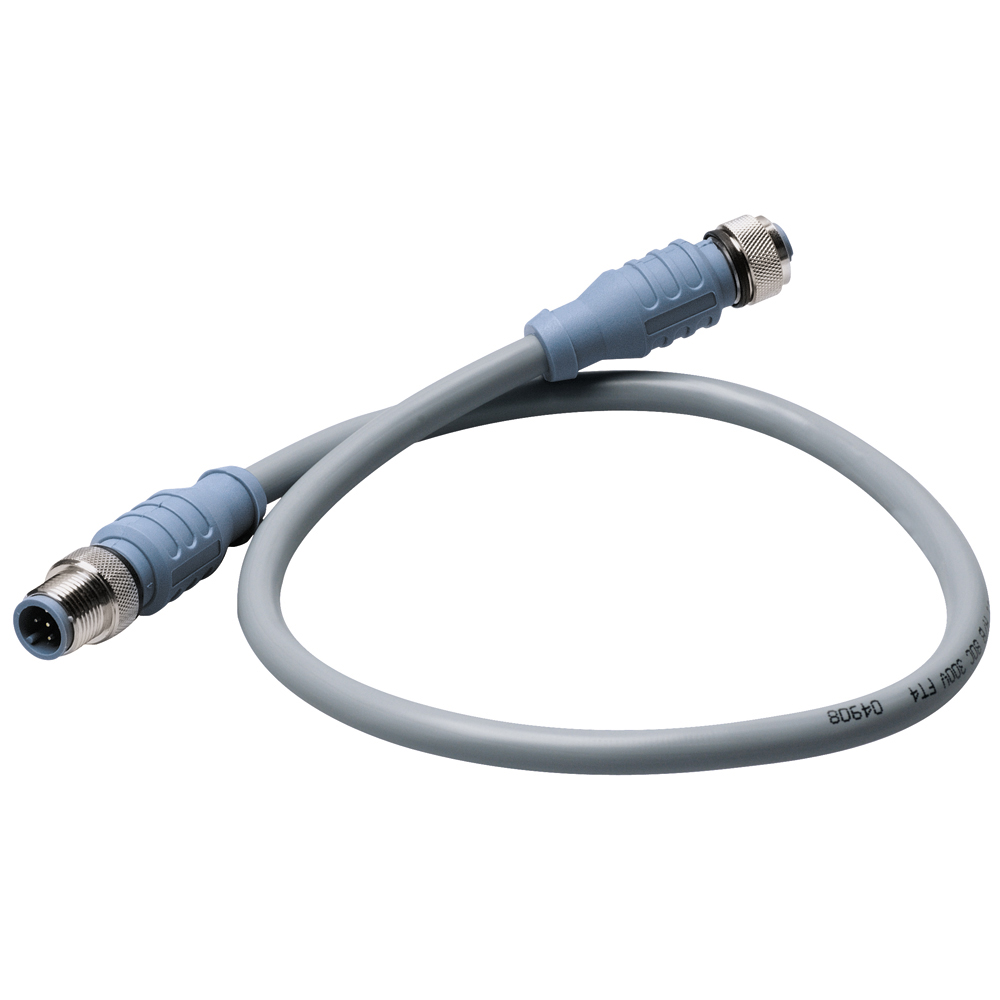

Maretron Micro Double-Ended Cordset – 6 Meter

MPN: CM-CG1-CF-06.0
SKU: CW31800
Maretron Micro Double-Ended Cordset - 6 Meter

Maretron Micro Double-Ended Cordset – 6 Meter

MPN: CM-CG1-CF-06.0

SKU: CW31800

The Maretron CM-CG1-CF-06.0 is a high-quality mechanical and electrical connector designed for durability and performance. It features a robust construction with various protective ratings and approvals, making it suitable for challenging environments. The connector supports a current rating of 4.0 Amps and a voltage rating of 250 V. Its design includes multiple layers of shielding and a wide temperature range.

Features
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Current Rating: 4.0 Amps
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C
  • NMEA: NMEA 2000 Approved

Categories: ,

14 in stock

$41.50

UPS Ground

OEM Parts

14 in stock

-

With 2-Day Shipping

Get By Friday 05/02

Add to wishlist

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Always Low Prices
Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Maretron Micro Double-Ended Cordset – 6 Meter

[mwai_chatbot id="default"]

About your product

Product Description

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59″
    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
    Environmental
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
    AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
    AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved

    Manufacturer : Maretron
    Manufacturer Part No : CM-CG1-CF-06.0
    UPC : 873804001562

    • Specs & Manuals

    Additional information

    Weight 1.05 lbs
    Dimensions 7.00 × 7.00 × 2.00 in
    Brand

    UPC

    MPN
