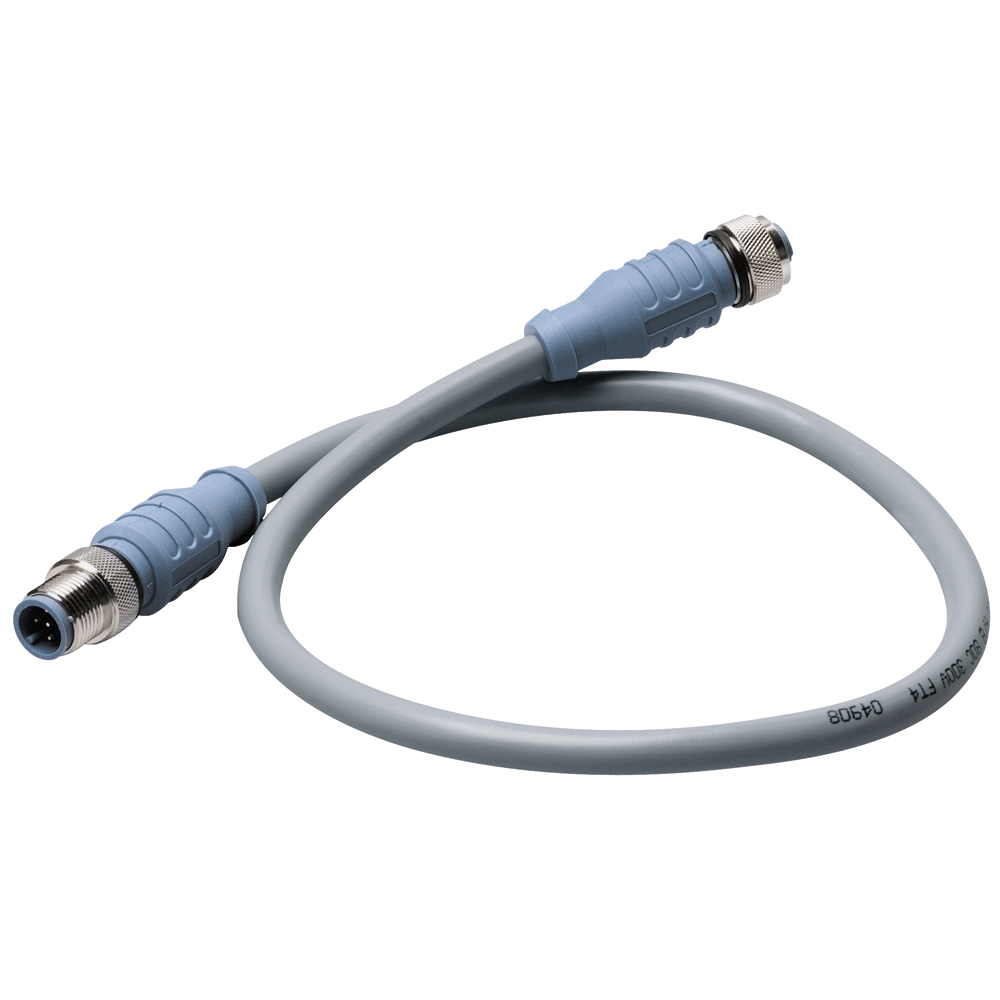

Maretron Micro Double-Ended Cordset – 3M

MPN: CM-CG1-CF-03.0
SKU: CW31799
Maretron Micro Double-Ended Cordset - 3M

Maretron Micro Double-Ended Cordset – 3M

MPN: CM-CG1-CF-03.0

SKU: CW31799

The Micro Double-Ended Cordset by Maretron is designed for mechanical, electrical, and environmental durability. It features a robust construction with high-quality materials, ensuring reliable performance in various conditions. This cordset is suitable for applications requiring stringent protection and temperature ratings. Its specifications make it a versatile choice for demanding environments.

Features
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Current Rating: 4.0 Amps
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C
  • NMEA: NMEA 2000 Approved

Categories: ,

21 in stock

$33.20

UPS Ground

OEM Parts

21 in stock

-

With 2-Day Shipping

Get By Friday 05/02

Add to wishlist

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Always Low Prices
Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Maretron Micro Double-Ended Cordset – 3M

[mwai_chatbot id="default"]

About your product

Product Description

Micro Double-Ended Cordset – 3M

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59″

Electrical

  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental

  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
    AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
    AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved

Manufacturer : Maretron
Manufacturer Part No : CM-CG1-CF-03.0
UPC : 873804001531

Specs & Manuals

Additional information

Weight 0.55 lbs
Dimensions 8.00 × 6.00 × 1.00 in
Brand

UPC

MPN
