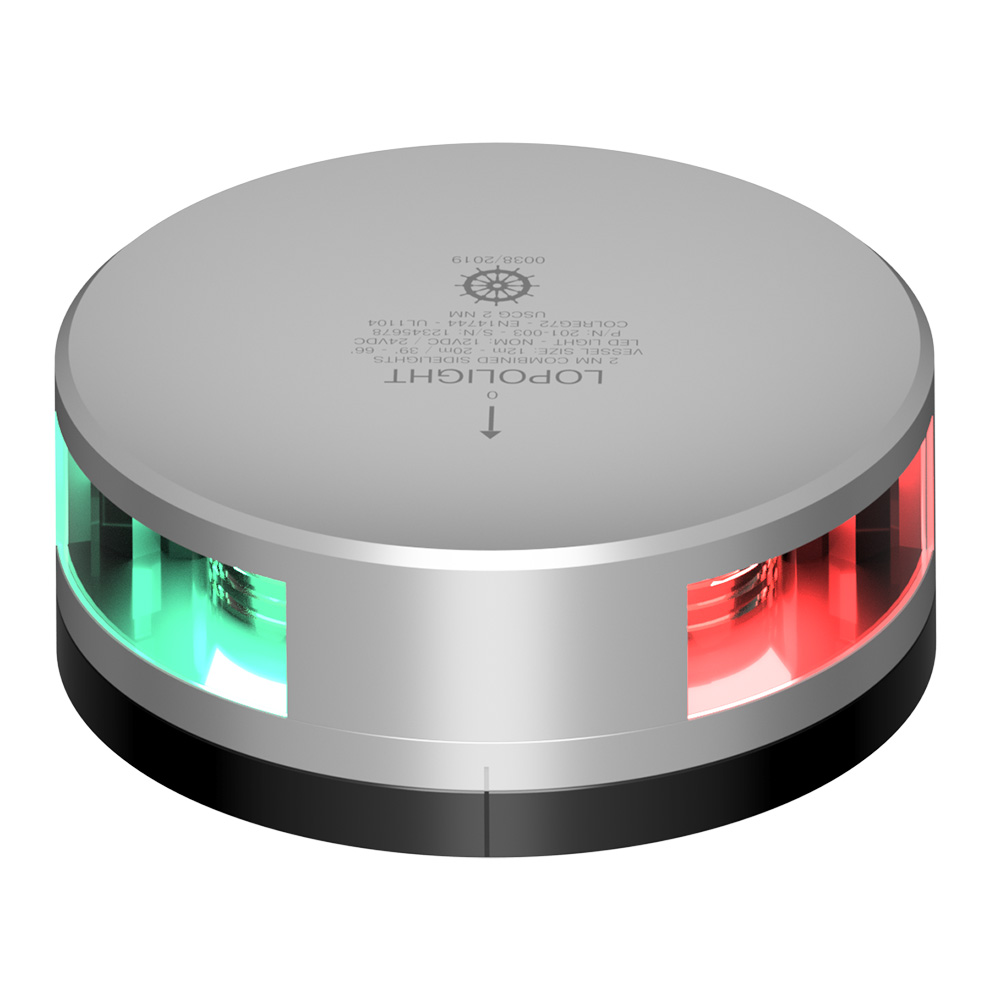

Combined Sidelight – 2NM – Silver Housing with FB Base

This silver sidelight is horizontally mounted and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Silver anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438043282
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: Red and green
• Visibility: 2NM
• Included In the Package: 1 Navigation light, pre-cabled with 2.5 meters shielded marine grade cable and installation guide
• Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: 2.5m cable
• Current Consumption (mA @ 24VDC): 90
• Current Consumption (mA @ 12VDC): 163
• Dimensions Metric: Ø92.5mm x 36mm
• Dimensions Imperial: Ø3.6″ x 1.4″
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2.2
• Vessel Size: Under 12 meters

Manufacturer : Lopolight
Manufacturer Part No : 201-003-FB
