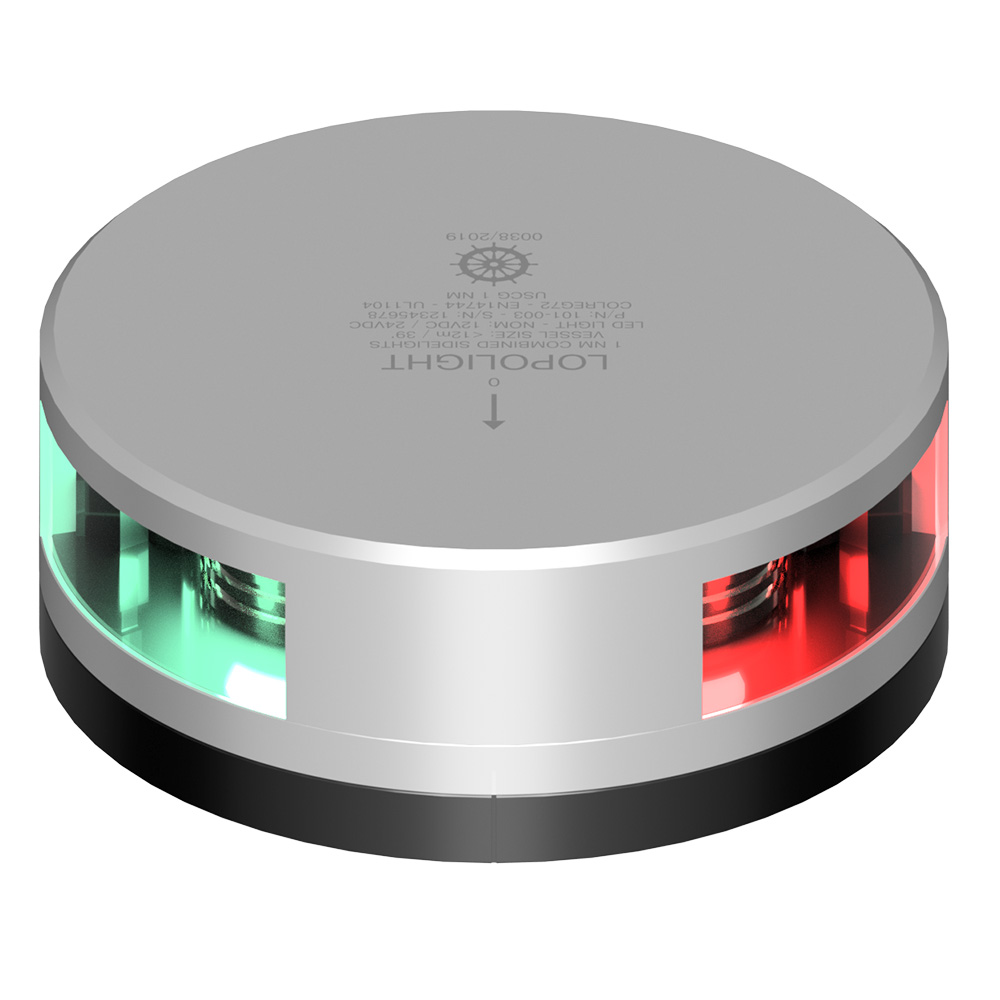

Lopolight Combined Sidelight – 1NM – Silver Housing w-FB Base

MPN: 101-003-FB
SKU: CW103271
Lopolight Combined Sidelight - 1NM - Silver Housing w-FB Base

Lopolight Combined Sidelight – 1NM – Silver Housing w-FB Base

MPN: 101-003-FB

SKU: CW103271

This horizontally mounted navigation light has a one-nautical mile range and features a sleek design with a silver anodized housing. The FB base allows for both screw-down and from-below mounting, centering the wiring for antenna-type pole mountings. It includes a 2.5m cable and is approved by multiple standards. The light is suitable for vessels under 12 meters.

Features:
  • Silver anodized housing
  • 2.5m cable included
  • Horizontal mounting
  • Red and green light colors
  • IP68 rating

Categories: ,

2 in stock

$423.56

Free Shipping

OEM Parts

2 in stock

-

With 2-Day Shipping

Get By Thursday 05/29

Add to wishlist

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Always Low Prices
Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Lopolight Combined Sidelight – 1NM – Silver Housing w-FB Base

[mwai_chatbot id="default"]

About your product

Product Description

Combined Sidelight – 1NM – Silver Housing with FB Base

This navigation light is horizontally mounted and has a one-nautical mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

  • Silver anodized housing
  • 2.5m cable is included

Specifications:

  • Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
  • Mounting: Horizontal
  • EAN: 5704438042605
  • Min. Feed Wire Gauge: 0.5mm2 AWG22
  • Light Color: Red, green
  • Visibility: 1NM
  • Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
  • IP rating: IP68
  • Connection: 2.5m cable
  • Current Consumption (mA @ 24VDC): 48
  • Current Consumption (mA @ 12VDC): 87
  • Dimensions Metric: Ø92,5mm x 58mm
  • Dimensions Imperial: Ø3.6″ x 1.4″
  • Operating Temperature: -25 degrees C to 55 degrees C
  • Operating Voltage: 10-32VDC
  • Power Draw (W): 1,4
  • Vessel Size: Under 12 meters

Manufacturer : Lopolight
Manufacturer Part No : 101-003-FB
