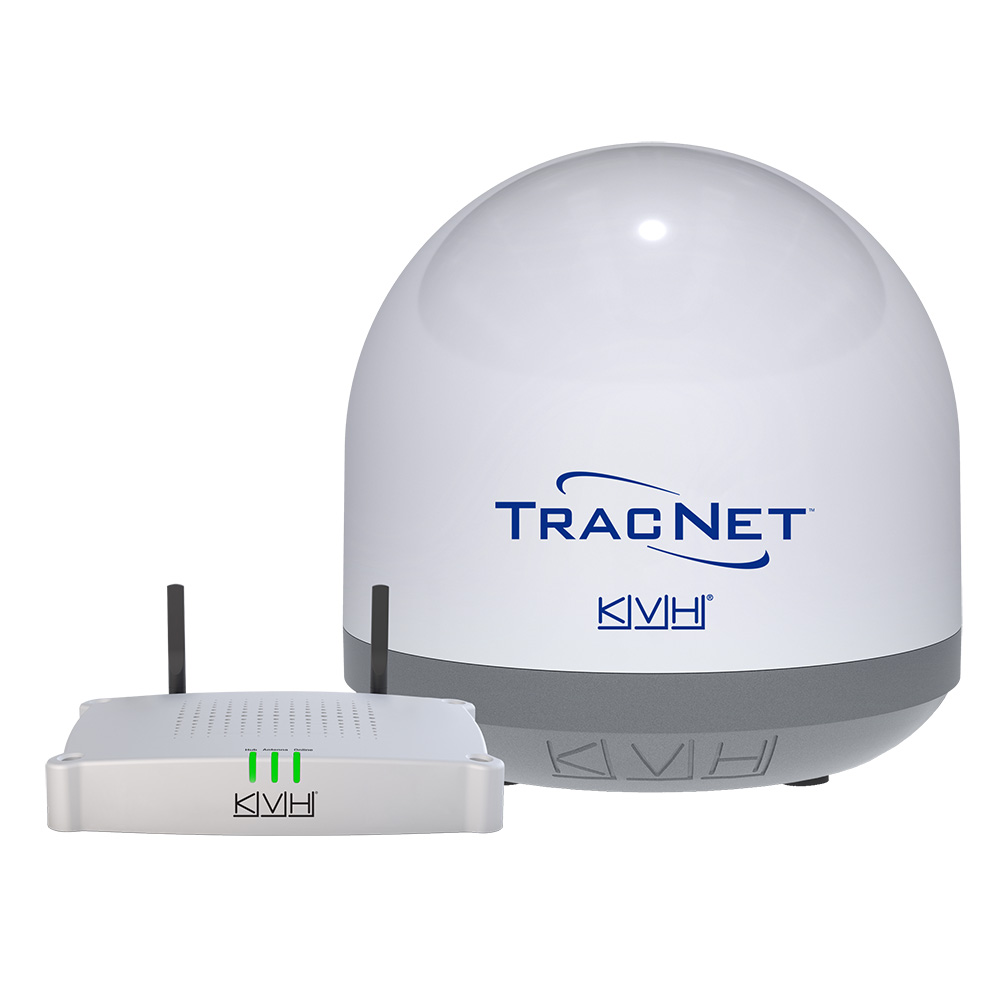

TracNet Coastal 5G/WiFi Compact Terminal with TracNet Hub

Are you looking for faster and more affordable data to support business and personal connectivity? Would you like to experience home-like content streaming on your boat? Stream, talk, watch, and connect with KVH TracNet Coastal, a compact, fast, marine-grade system that is compatible with 5G and LTE cellular services worldwide!

Features:

• 5G/LTE and WAN WiFi in a compact radome
• Integrated cellular//WiFi system with intelligent hybrid switching
• High-gain 5G cellular antennas for extended offshore coverage
• Single-cable, DC-powered maritime design (TracNet Hub)
• Data speeds as fast as 300+ Mbps plus high-gain WiFi reception in marinas and ports
• Data plans starting as low as $1/GB (subject to change)
• Connectivity in 135 countries via the KVH ONE network and exclusive KVH Fusion eSIM technology along with the convenience of month-to-month data plans and the option to Bring Your Own SIM (Requires TracNet Coastal Pro system)
• Intelligent switching among 5G, LTE, and WiFi with integrated onboard router
• Perfect hybrid complement for existing onboard communications, such as Starlink, VSAT, and OneWeb
• Marine-grade, compact antenna
• Single-cable antenna installation with ultra-efficient DC power design
• Hybrid hub functionality to intelligently and automatically switch between 5G, WiFi, and as many as two additional third-party antenna (Starlink, OpenNet, etc.)
• Compatible with the CommBox Edge Communications Gateway for advanced network and bandwidth management, channel balancing, advanced bonding, and more
• Belowdeck WiFi 5 Access Point (AP), supporting dual-simultaneous WAN and LAN WiFi
• 4-port ethernet router
• Remote SIM technology, supporting up to two user-supplied SIM cards with convenient below-deck access

Technical Specifications:

• Dome Dimensions – 13.5" (Dia.) x 13.1" (H)
• Dome Weight – 8 lbs
• Dome Operating Temperature – -25°C to +55°C (-13°F to +131°F)
• Dome Survival Temperature – -30°C to +70°C (-22°F to +158°F)
• Below Deck Unit (BDU) Ethernet Ports – 4, Configurable as Starlink WAN/ Backup WAN/User WAN
• Power Input – 10-30 Volts DC (direct wire), with available AC Power Supply option
• Power Consumption (Nominal/Max) – 16W/22W
• BDU Operating Temperature – -15°C to +55°C (+5°F to +131°F)
• BDU Survival Temperature – -25°C to +70°C (-13°F to +158°F)
• Intelligent Connection Switching Number of WANs Supported – 4 Cell/WAN Wi-Fi/Starlink/Backup WAN

Manufacturer : KVH
Manufacturer Part No : 01-0465
