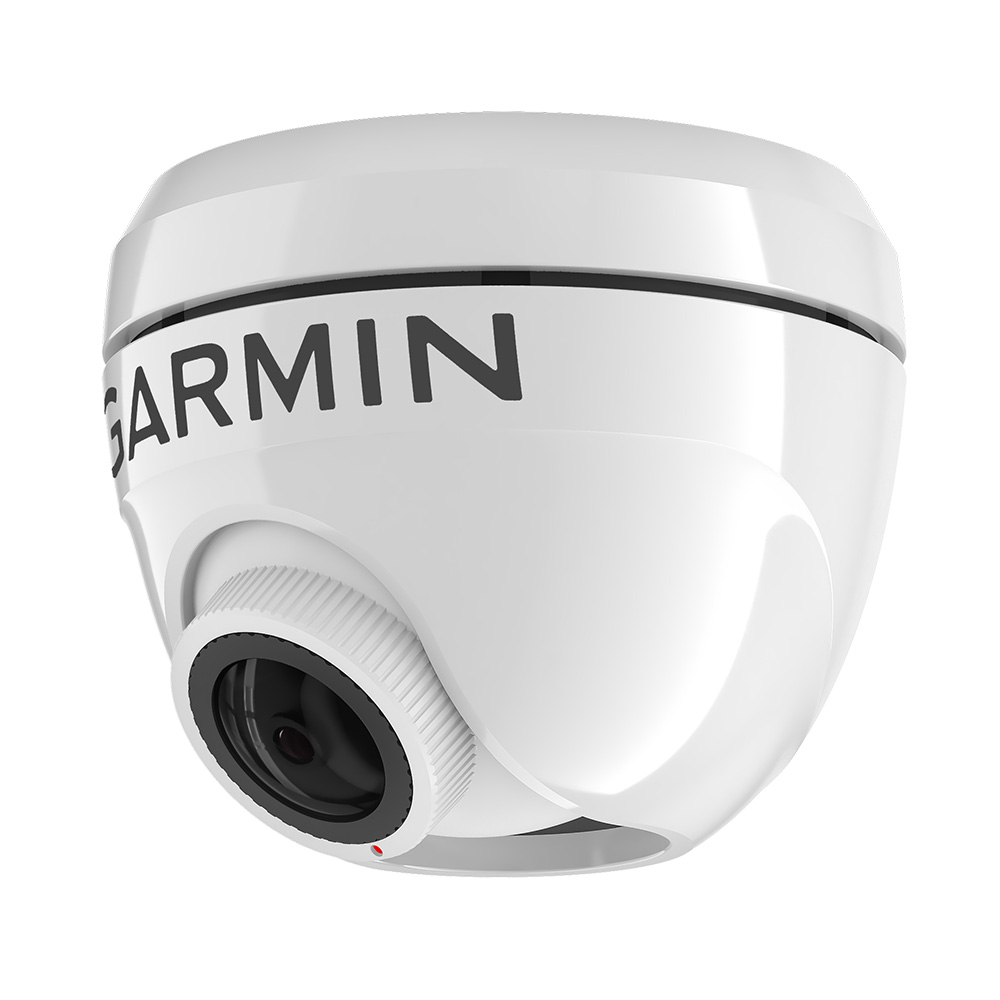

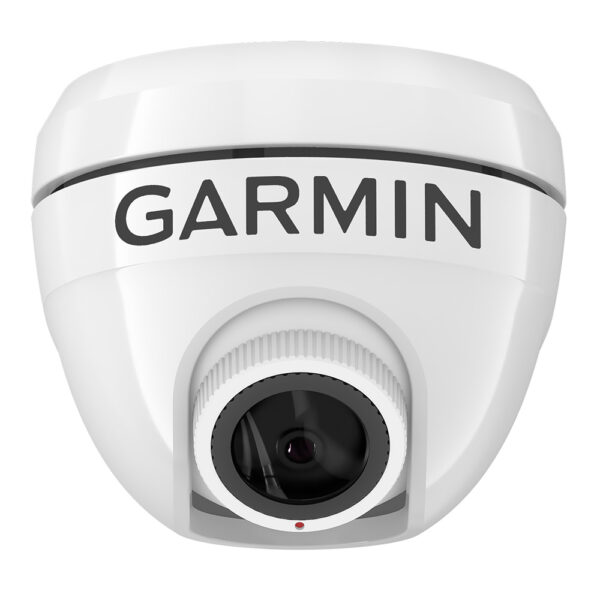

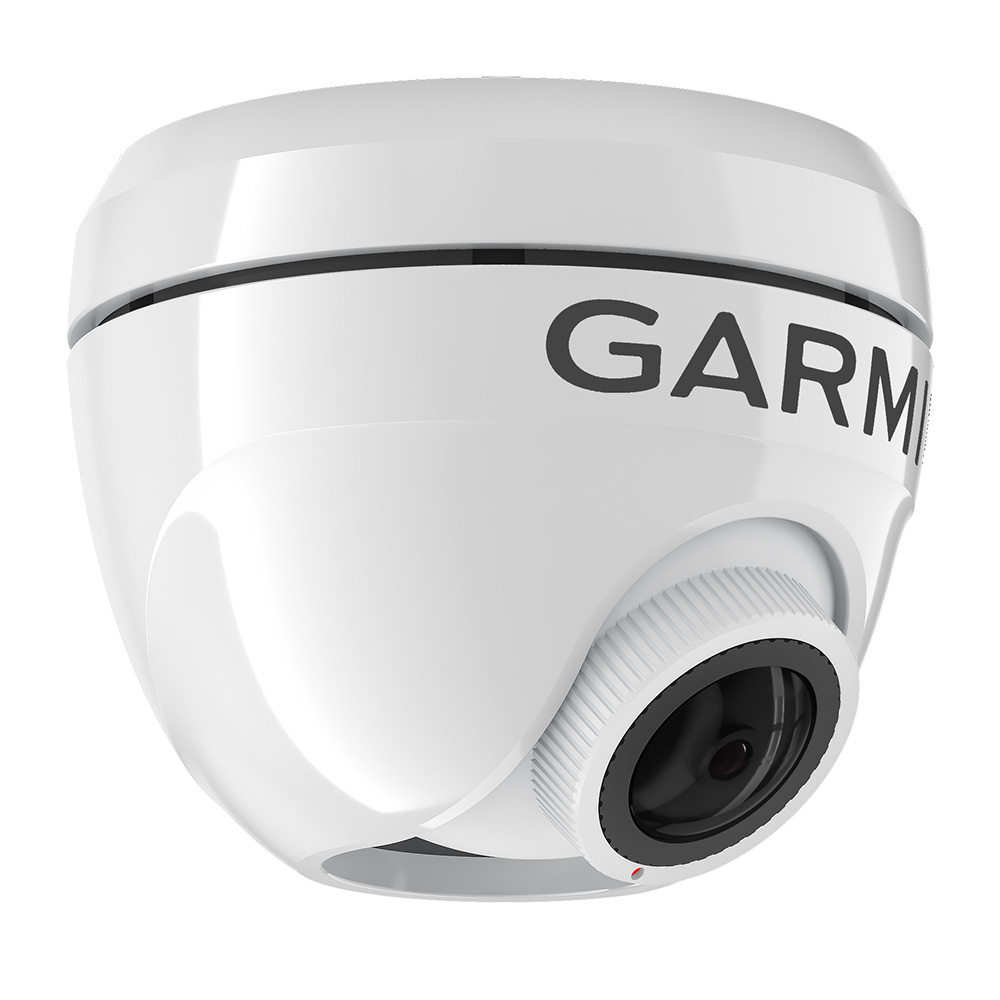

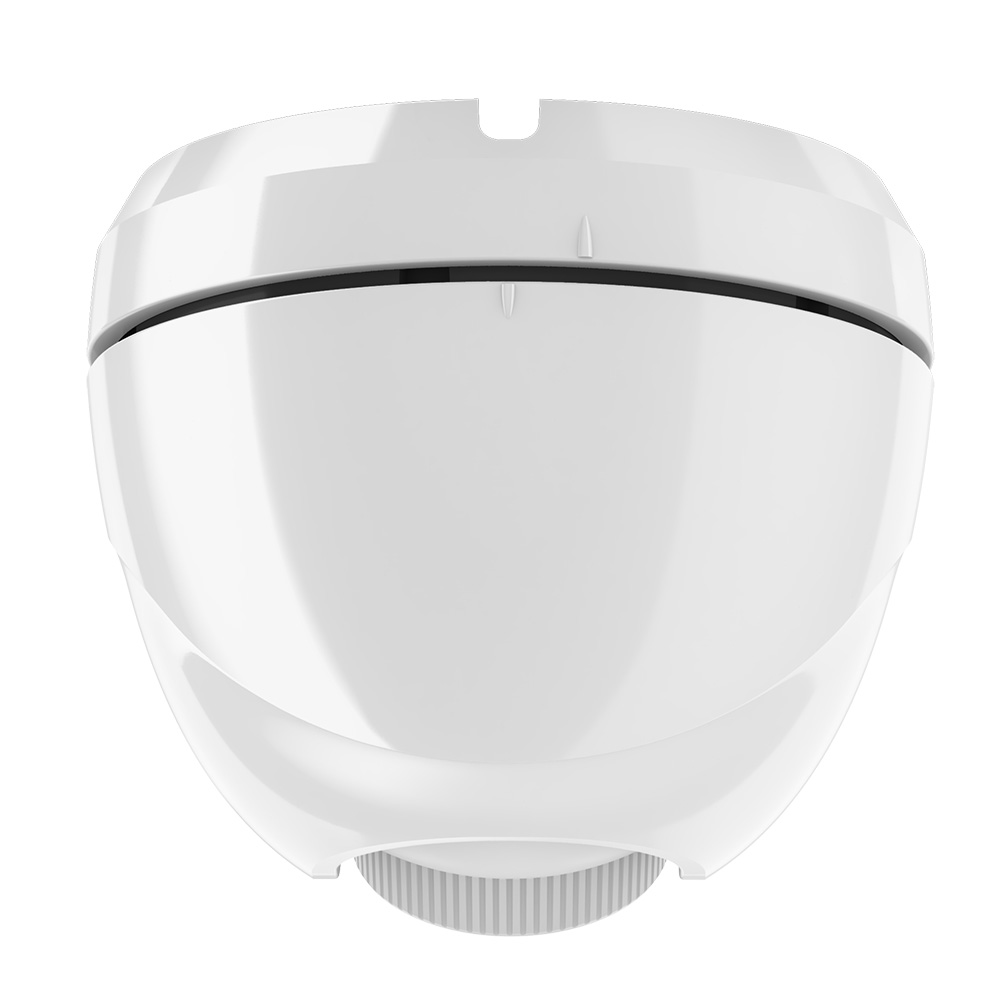

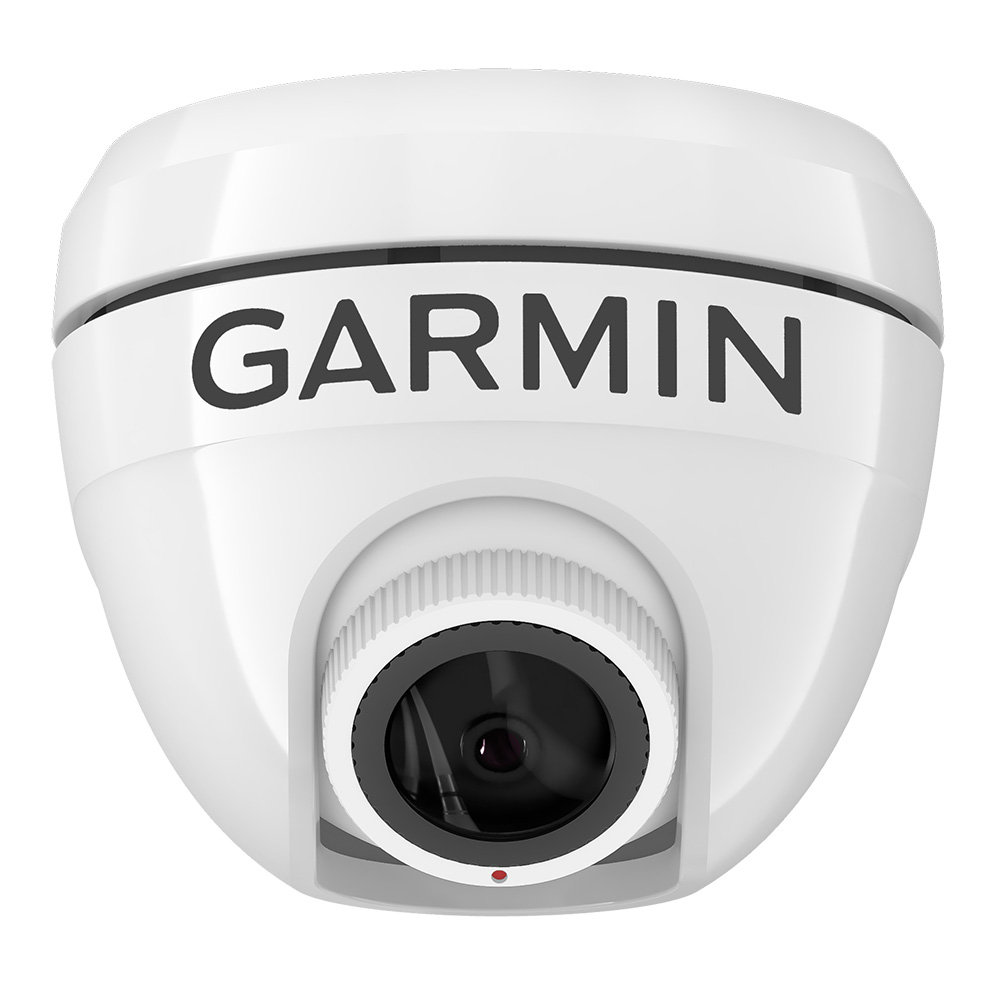

GC™ 245 Surface Mount Camera – White

BRING VISION TO YOUR HELM

Now there’s a high-resolution marine camera that takes the stress out of docking your boat. Enhance proximity awareness and confidence in close quarters with the GC 245 surface-mount camera.

• Distance markers specific to your boat¹ and user defined guidance lines
• 1080p high-resolution output²
• See camera feeds in fisheye or standard view; birdseye view also available1
• Full integration on the Garmin marine network or Garmin Bluenet™ network

Guidance Lines

Set up your own guidance lines for more confidence avoiding obstacles in the marina.

Distance Markers

Use distance markers calibrated to your vessel by the boatbuilder so you know how far away you are from objects

Two Mounting Options

Installation is simple, and the camera can be mounted with the dome up or down.

Three Camera Views

Get the right perspective with FishEye and standard views with impressive low-light performance; GC 255 is also available with BirdsEye camera view¹.

Multiple Camera Feeds

See up to four camera feeds simultaneously on your compatible MFD; watch the video on networked chartplotters, or set it up on a custom combo page.

See What You Want

Take a closer look with digital zoom, or get a different perspective with digital pan.

In The Box:

• GC 245 surface mount camera
• GVA 10 with integrated power and network cables
• Network adapter cable (500 mm)
• Video coaxial cable (8 m)
• Mounting hardware
• Documentation

Specifications:

• Unit dimensions: 2.4” x 2.4” x 2.2” (6.1 x 6.1 x 5.1 cm)
• Weight: 3.25 oz (92 g)
• Hardwire power: 12V/24V
• Operating current: 300 mA at 12VDC; 200 mA at 24VDC
• Power consumption: 4.5 W
• Connection to chartplotter: IP
• Versatile mounting options: yes (ball-up or ball-down)
• Rugged housing: yes
• Setup: plug-and-play
• Water rating: IPX7
• Video resolution: 1920 x 1080 pixels²
• Video output: H.264 over GMN and BlueNet™
• Images: Standard and reverse
• Selectable views: FishEye, standard, BirdsEye (OEM calibrated)
• Augmented reality features: Distance markers (OEM calibrated) and guidance lines (user setup)
• Viewing angle (H/V): 160°H/90°V
• Operating temperature: -20°C to +60°C
• Scanning system: progressive scan
• Day/night operation: RGB mode full-time

¹Professional calibration required

²1080p resolution available on select chartplotters only

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

Manufacturer : Garmin
Manufacturer Part No : 010-02892-10
