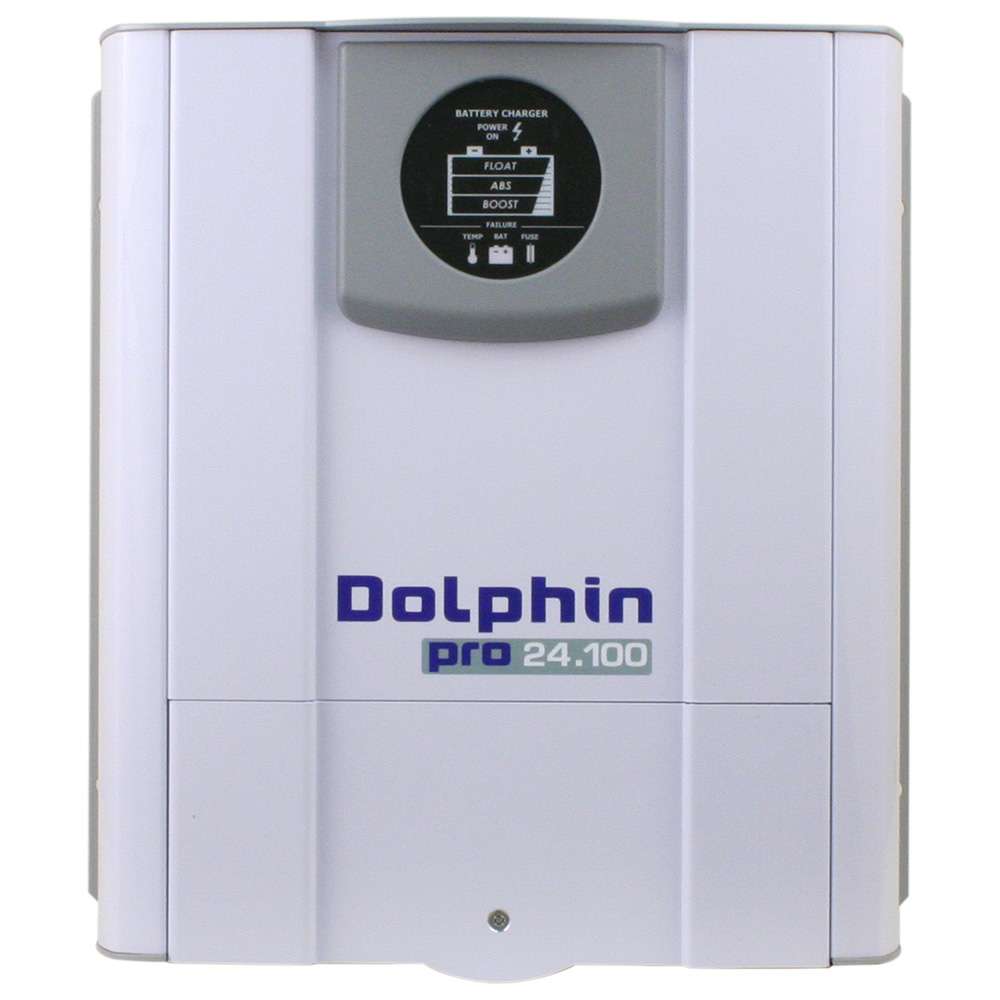

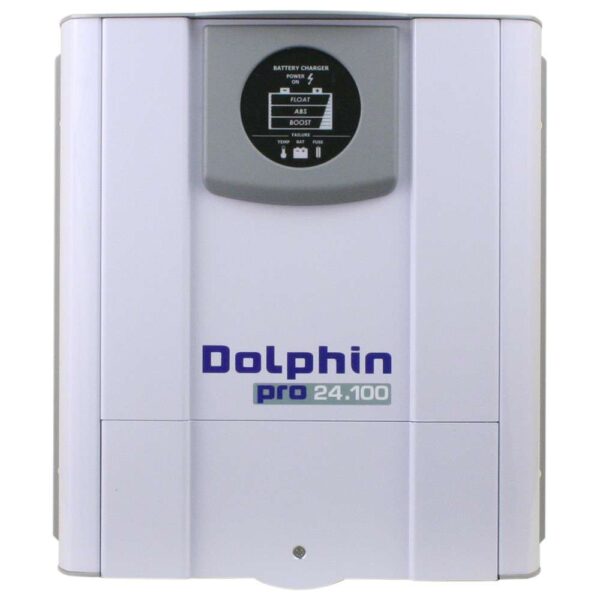

Pro Series Dolphin Battery Charger – 24V, 100A, 230VAC – 50/60Hz

The Dolphin Series of battery chargers has always been recognized for its outstanding quality, which the manufacturer is proud to support with a 2-year warranty. Due to production on a wide scale, Dolphin is able to offer high-quality, truly international battery chargers at a reasonable price.

The Pro Range, which allows battery banks of up to 1000 amps to be charged, can be equipped with an optional touchview touchscreen. It provides an intuitive display of measurements as well as charging phases (boost, absorption, and float), the allocated available power, and possible operating faults. The Pro range is equipped with communication via CAN bus, which means it can be used professionally in all land and industrial energy management sectors.

Features:

• 24V-100A Dolphin Pro (230 VAC 50/60 Hz input voltage only)
• All Dolphin Battery Chargers and accessories are CE-marked and manufactured to UL and ABYC specifications
• The Pro Touch Range features a built-in TouchView remote in place of the standard display panel on the Pro chargers
• The Touchview control panel gives the user more information and control of the charger functions
• LED Display for programming and monitoring functions
• Temperature sensor for battery compensation
• Switch mode technology and a three-stage charging design with a power supply
• Modern, lightweight, and compact design with white aluminum powder-coated casing
• Universal AC input with automatic voltage switching 115/230 VAC 50/60 Hz (24V-80A, 24V-100A, and 24V-150A are 230VAC 50/60 Hz ONLY)
• 4 screw simple install with easy access removable panel
• ISO 9002-certified manufacturing plant

Three-Stage Charging Curve

Bulk Stage: A high current is sent to the battery until it reaches approximately 80% of its full charge.

Absorption Stage: The voltage level is maintained and the current is reduced until the battery is 100% charged.

Float Stage: Voltage and current are reduced to maintain the battery. Float gives what the battery requires.

Manufacturer : Dolphin Charger
Manufacturer Part No : 99504
UPC : 786142995045
