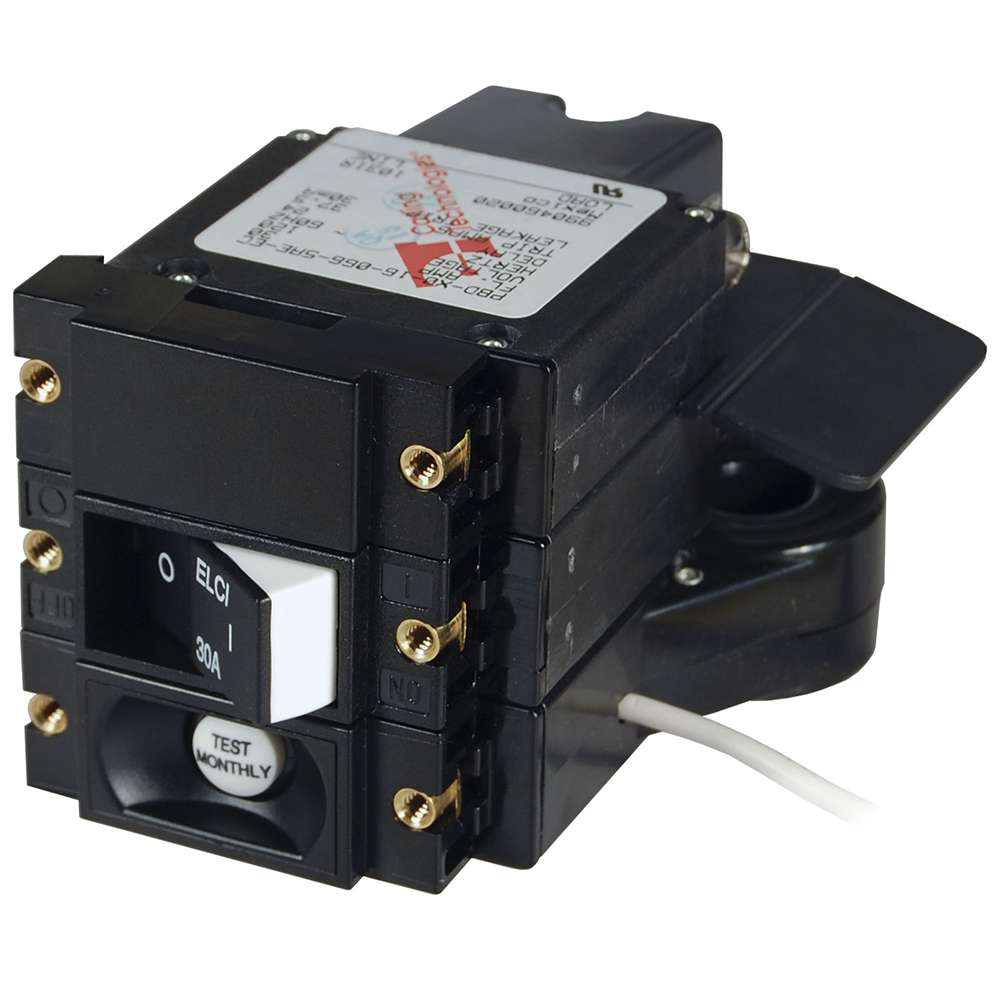

A-Series ELCI Main Circuit Breaker – Double Pole 120V AC 30A – Flat Rocker

Features:

• Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
• Meets UL 1500 external ignition protection requirements
• Trips on short circuit, overload, or leakage to ground
• Front panel mount—installed in a power distribution panel

Specifications:

• Amperage: 30A
• Actuator Style: Flat Rocker
• Poles: 2
• Ignition Protected: Yes
• Max Voltage: 240VAC/120VAC per pole
• Circuit Breaker Type: Magnetic Hydraulic – trip free
• Interrupt Capacity: 5000A
• Minimum Operating Temperature: -35 degrees C
• Max Operating Temperature: 65 degrees C
• Leakage Trip Amps: 30mA

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Blue Sea Systems
Manufacturer Part No : 3102100
UPC : 632085310219
