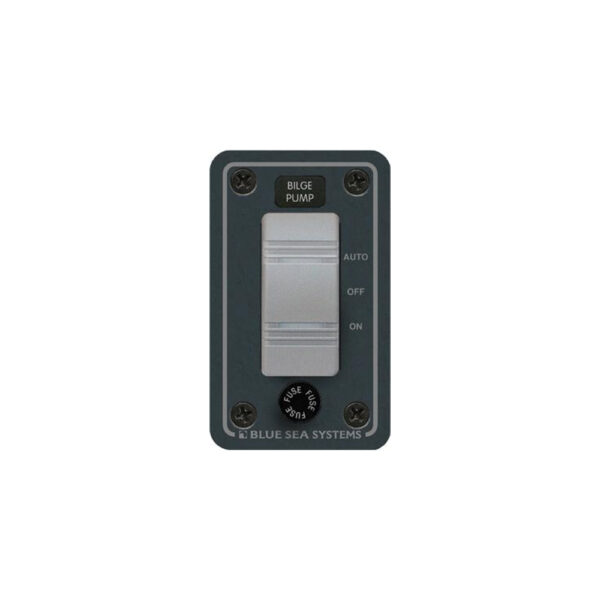

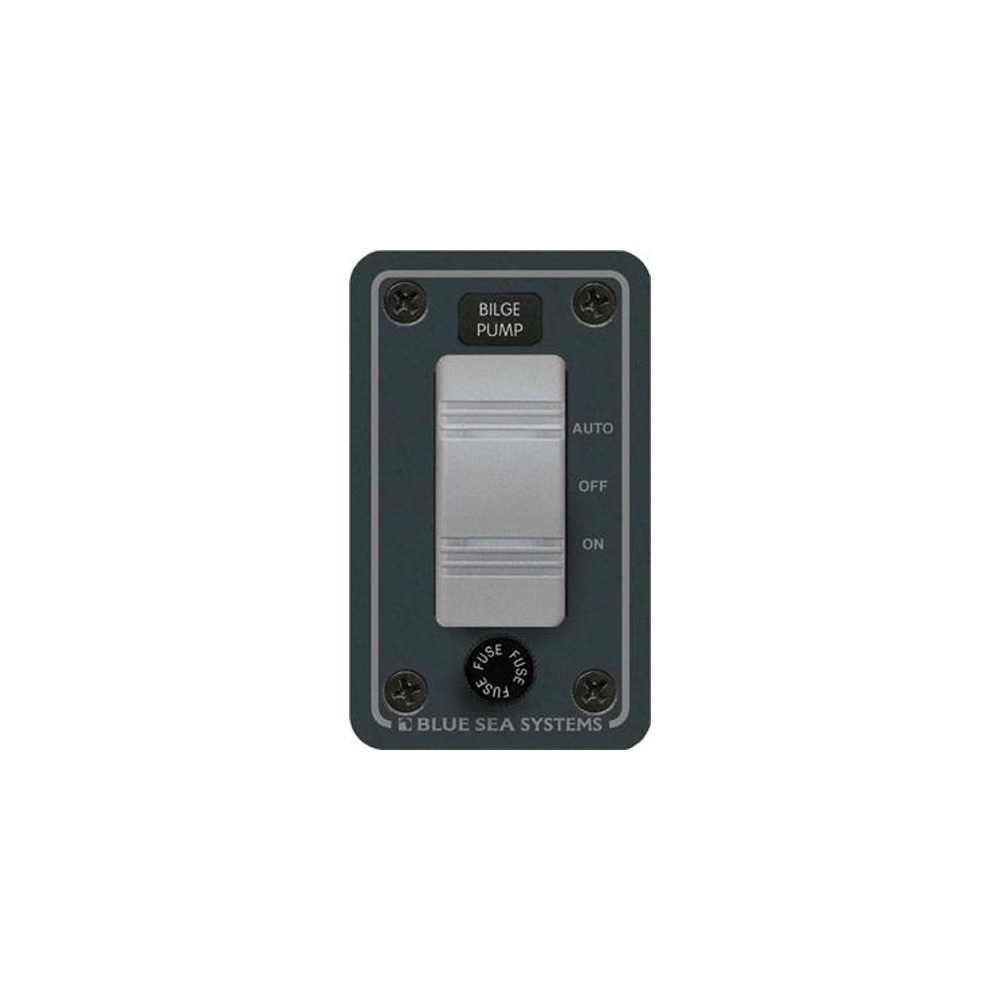

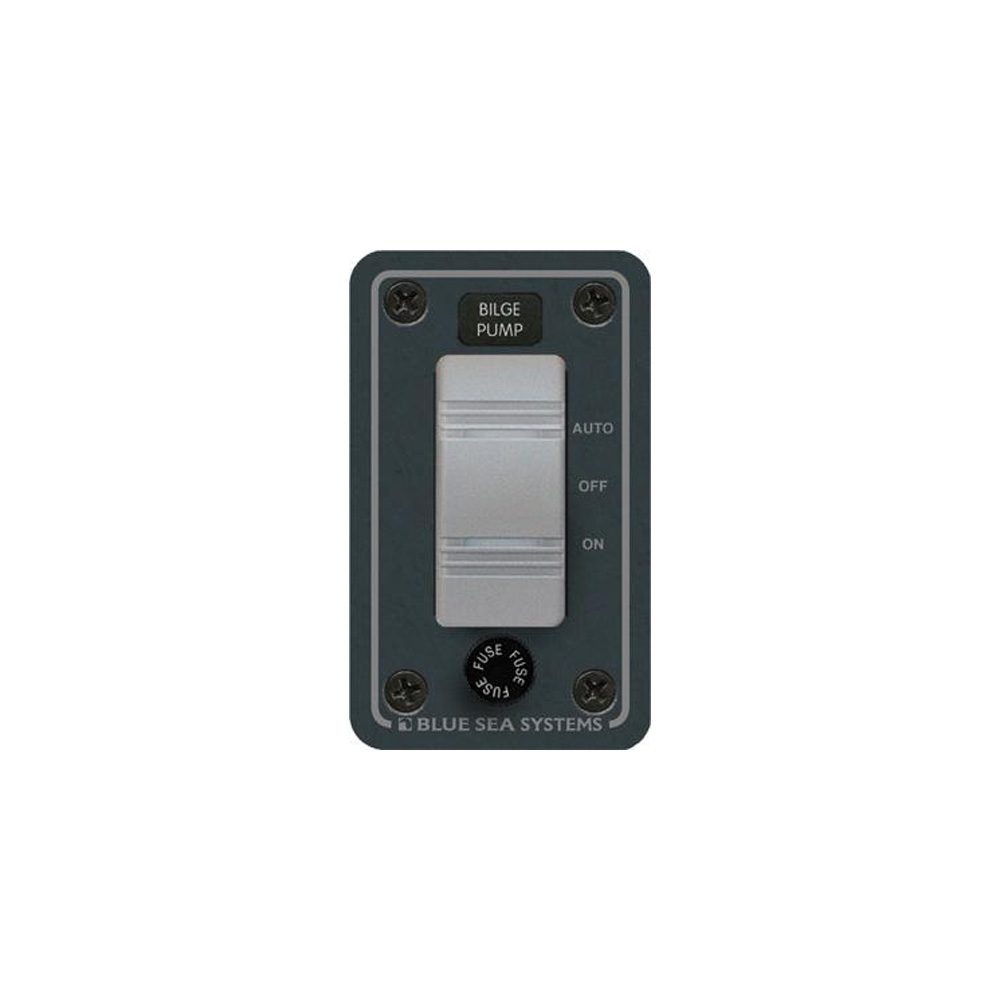

8263 Contura Single Bilge Pump Control Panel

Blue Sea Systems water resistant 12/24 Volt DC Bilge Pump control panel with Contura rocker switch and fuse holder for fuses up to 20amp

Features:

• Designed for 12 or 24V DC systems
• ON – OFF – AUTO Contura Switch
• Watertight mounting gasket
• Fuse holders accept commonly available AGC and MDL glass fuses
• “ON” LED embedded in switch indicates pump is running
• Completely wired and ready to install

Specifications:

• Weatherproof – Water Resistant
• No. of Bilge Pumps – one (1)
• Nominal Voltage – 12/24V
• Panel Cumulative Rating – 45A
• Switch Rating: 20A @ 12V DC / 15A @ 24V DC
• Dimensions (H x W x D) – 3.75″ x 2.25″ x 3″
• Weight – .25lb

In the Box:

• Panel Mount AGC/MDL Fuse Holder (P/N 5021)
• Contura III Switch SPDT – On – OFF – (ON) (P/N 7944)
• Black 60 Label Set (P/N 8214)

*Sold as an Individual

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Blue Sea Systems
Manufacturer Part No : 8263
UPC : 632085082635
