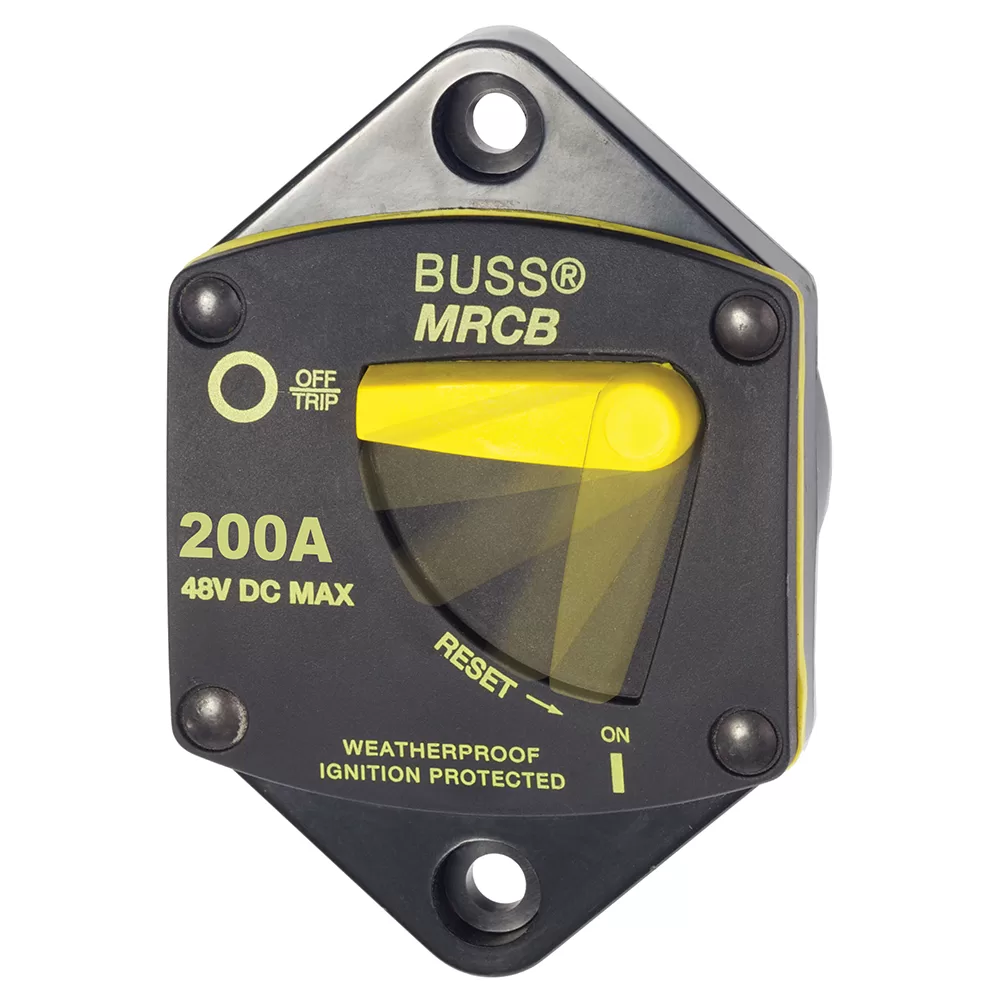

7049 200 Amp Panel Mount 187 Series Circuit Breaker

Features:

• Combines switching and circuit protection into a single device*

• Clear, single lever operation

• “Trip Free” design cannot be held “ON” during fault current condition

• Waterproof

• Recessed mounting holes for clean appearance

• Large Clearance around terminal studs accecpt heavy gauge wire lugs

• Robust 5/16 M8 terminals provide high torque connections

• Large lever with vertical/horizontal orientation provides indication of trip status

• Ignition protected – Safe for installation aboard gasoline powered boats

Specifications:

• Interrupt Rating – 5,000 A@12V DC, 3,000A@24V DC, 1,500A@42V DC

• Maximum Voltage Rating – 48 Volts DC

• Operating Temperature Range – -40xC to 85xC

• Circuit Breaker Type – Thermally responsive bi-metal blade

• Circuit Breaker Class – Type III – switchable/manual reset – trip free

• Terminal Stud Size – 5/16″-18

• Terminal Stud Torque – 75 in-lb

• Mounting Holes – Accept #10 (M5) Screw

• Weight Lb (Kg) – 0.50 (0.23)

• Case Material – Thermoset Polyester

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Blue Sea Systems
Manufacturer Part No : 7049
UPC : 632085070496
