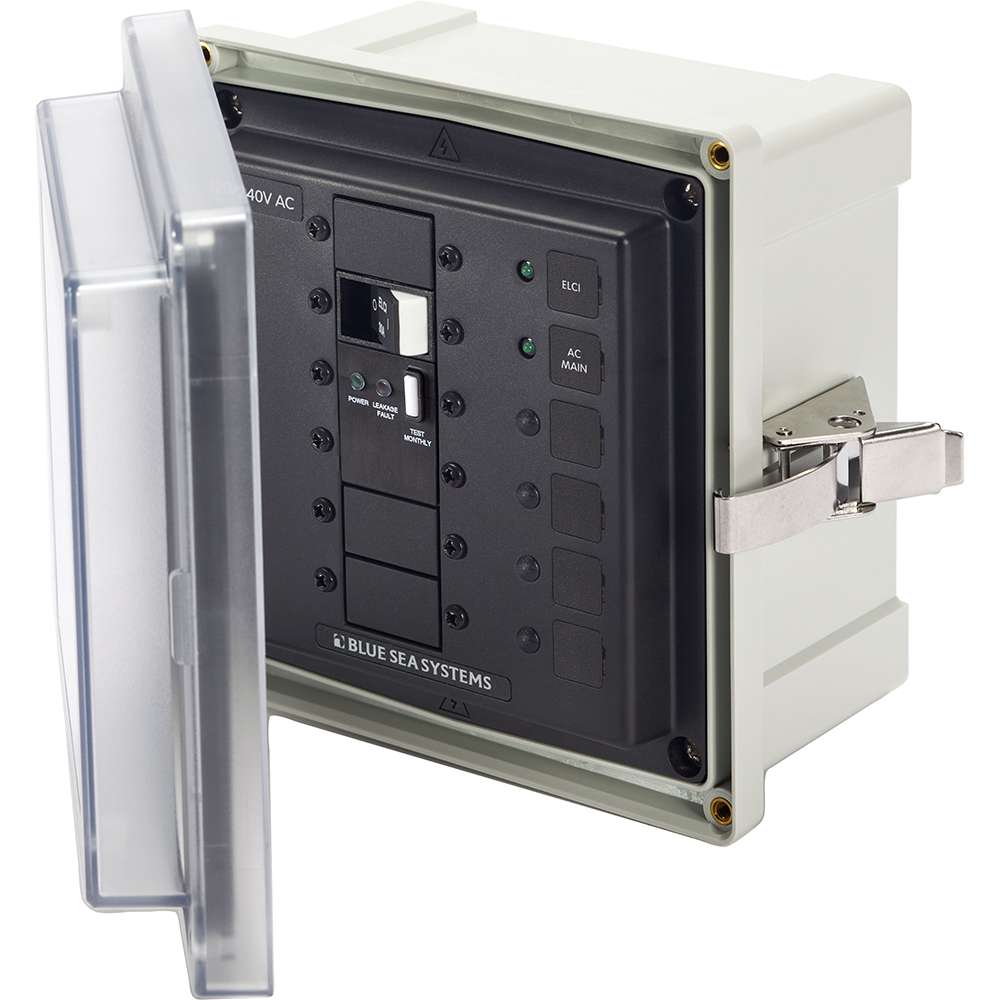

3120 – SMS Panel Enclosure with ELCI Main (50A) and 2 Blanks – 240V

The 3120 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices.  Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10′ of AC shore power inlet.

Features:

• Blank apertures for custom breaker loading
• Glass filled polycarbonate base
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
• Includes waterproof glands
• LEDs for backlighting and ON indication

Technical Specifications:

• Circuit Breaker Type – 1 x ELCI (50A) Main 240V and 2 x Blank
• Dimensions (Overall) (H x W x D) – 7.6″ x 7.4″” x 4.7″ (192 x 188 x 120mm)
• Dimensions  (Enclosure) (H x W x D) – 6″ x 6″ x 4″ (152 x 152 x 102mm)
• LEDs Installed – 2 x Green ON (240V AC)

In the Box:

• 3120 Enclosure
• Glands x 5
• Labels
• Mounting hardware
• Instruction manual

*Sold as an Individual

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Blue Sea Systems
Manufacturer Part No : 3120
UPC : 632085031206
