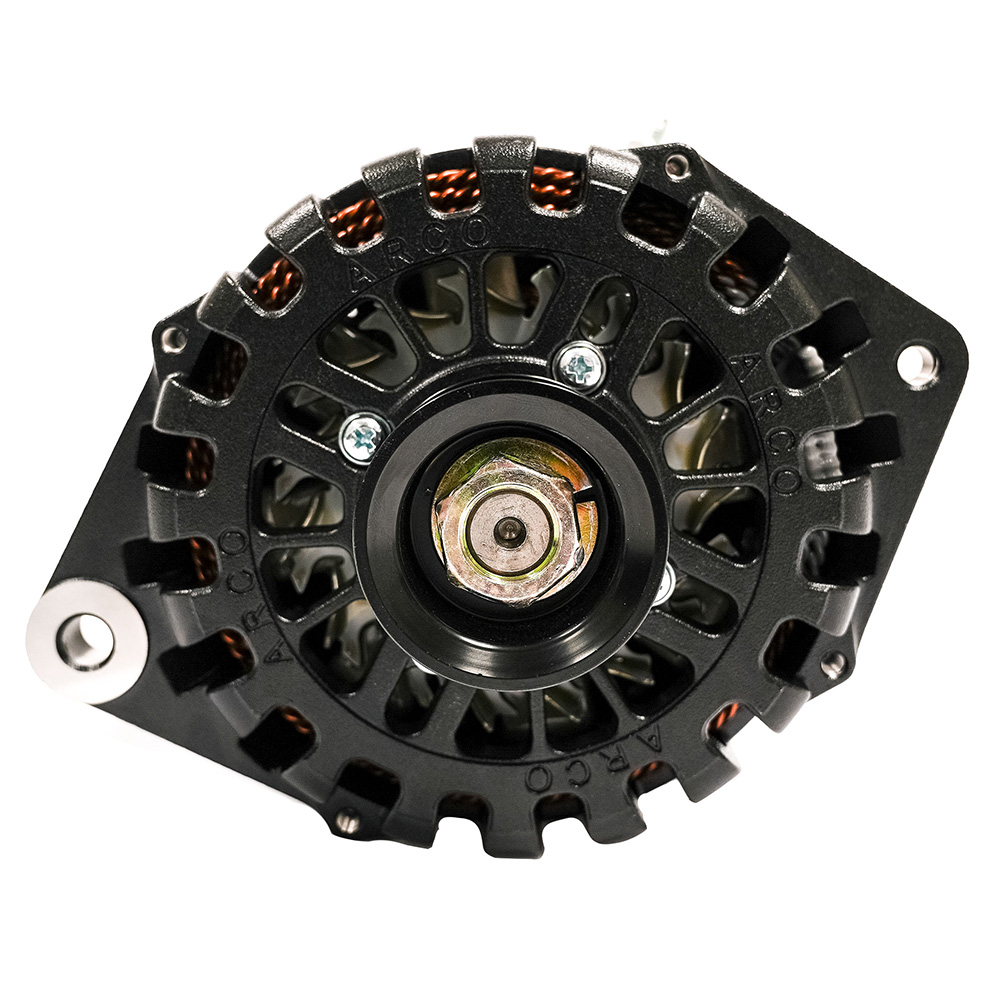

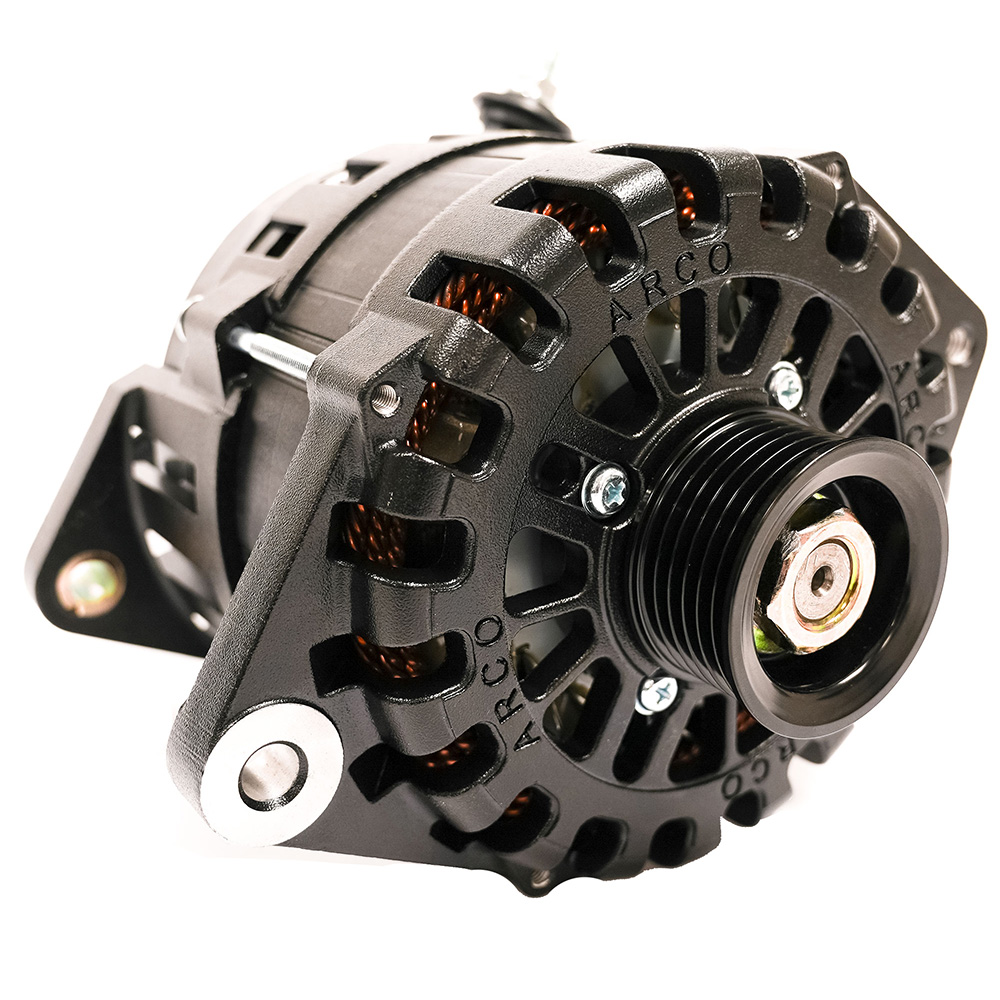

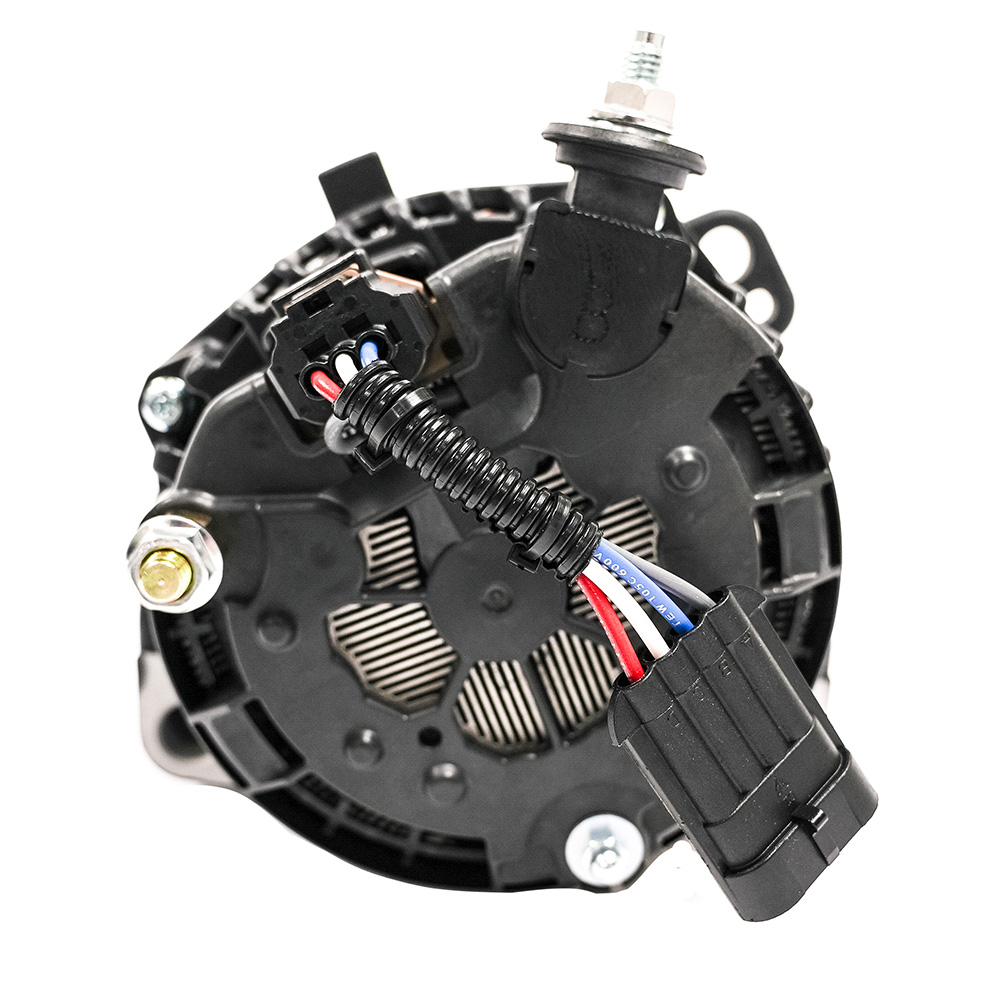

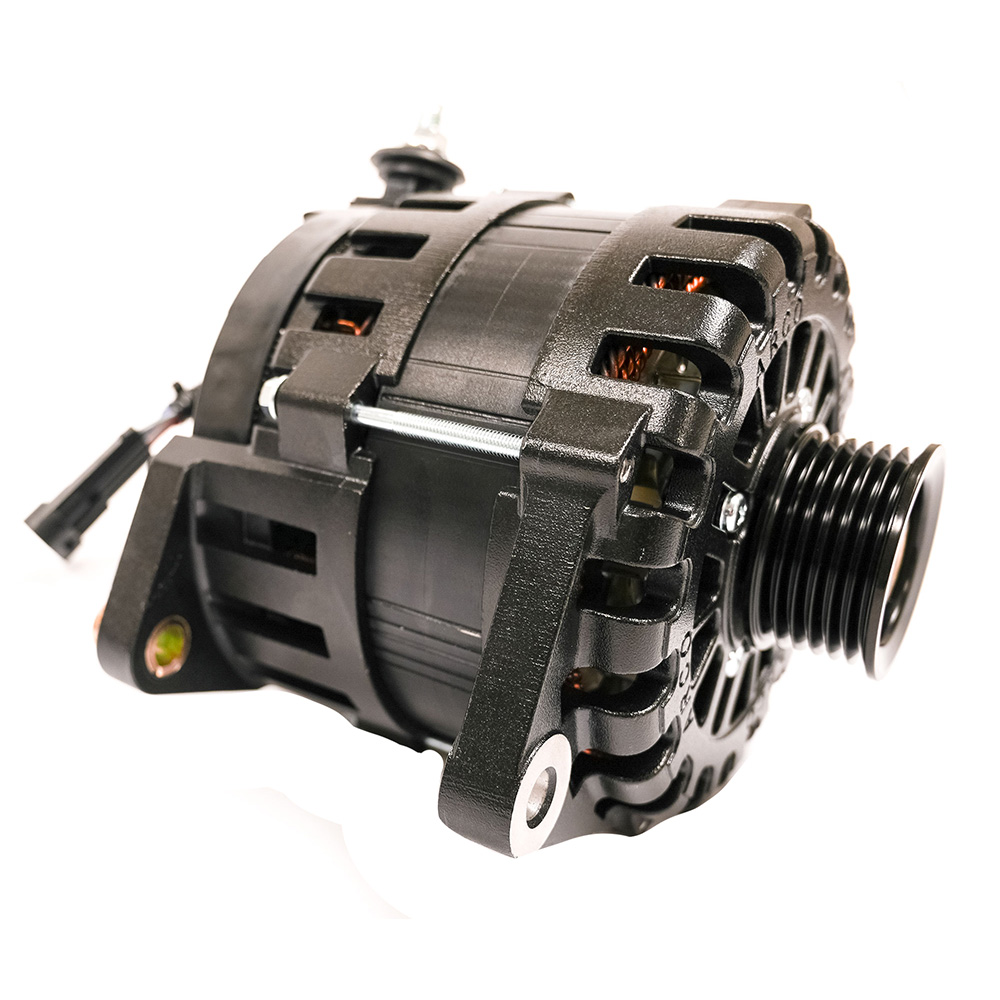

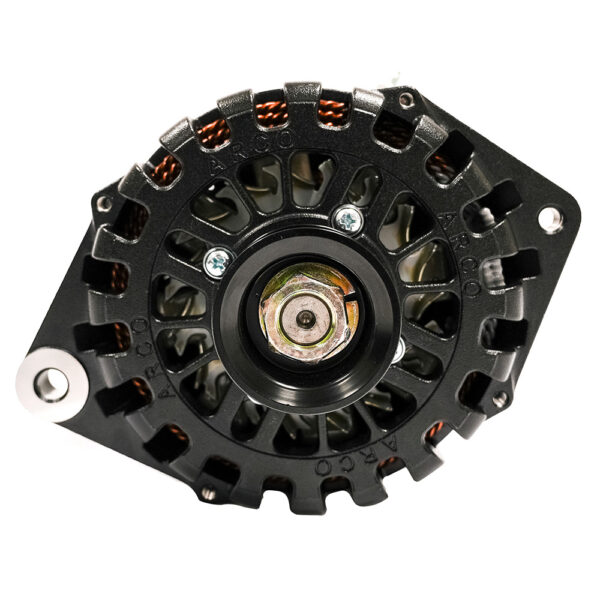

Zeus A275L N62 Alternator with Clutch Pulley & Regulator

The highest power output alternator in its size/class.

Features:

• Engineered for High Energy Production.
• Suitable for Marine, RV, Military, and Commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance. Runs 8 – 20% cooler than incumbent alternators due to:

   – Heat shedding coatings

   – Rectifier located on housing exterior

   – Dual cooling fans

   – OEM Components

• It is optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A275L cooler. This translates to more amperage for sustained periods.
• Use an ARCO Zeus Bluetooth alternator regulator for maximum performance or lithium battery charging.
• SAE J1171 Certified.
• Made in the U.S.A.

Technical Specifications:

• Voltage – 12v
• Field Type – P
• Rotor Poles – 16
• Stator Size – 138mm
• Frame Size – Large
• Weight – 14.9 lbs/6.7 kg
• Regulation – Internal/External (Internally regulated with adaptor for optional external regulation.)
• Output Voltage – 14.1v (Default)
• Finish – (Black) Cerakote or E-coating
• Cut-In RPM – 1,061 Alternator RPM
• Maximum Alt RPM – 19,000
• Battery Post – M8 Thread Post, Side Mount
• Standard Pulley – 49K6 (6-groove, 49mm)
• Pulley Mount – 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware – M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes – 6 positive, 6 negative, 50A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) – 311 Amps
• Sustained Cruising Output (Hot, 6,000 RPM) – 227 Amps
• Sustained Idle Output (Hot, 3,000 RPM) – 198 Amps
• Max Continuous Operating Temperature – 110°C / 230°F

Mounting Application:

• Mercedes Sprinter 1999-2006 alternators, Mercedes Sprinter Factory dual alternator 2007-Up Replacement. Replaces Roadtrek Mercedes Dual alternator

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Manufacturer : ARCO Marine
Manufacturer Part No : A275L-12-N62-IE-50K6CP
